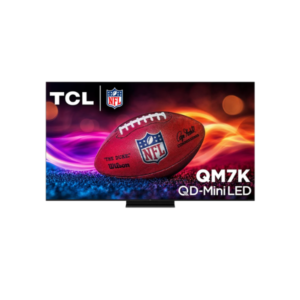

tcl TCL 85QM7K – Full Specifications TV
RATED
Excellent
8.8/10

84.6″ TCL 85QM7K – Full Specifications

Cinema nights get a serious upgrade with the TCL 85QM7K, an 84.6-inch 4K TV with 52 ppi, a 48–144 Hz refresh range and variable refresh.

84.6″ · 1.778:1 / 16:9 · MODEL YEAR 2025
tcl●TV
tcl TV
Add as preferred source
Display
84.6 in, HVA, Mini LED, 3840 x 2160 (4K)
84.6
Refresh rate
48 Hz - 144 Hz
48 Hz
Dimensions
1889 mm x 1088 mm x 58 mm
1889
Weight
34.1 kg
34.1 k
Processor
AIPQ Pro

Overview

Cinema nights get a serious upgrade with the TCL 85QM7K, an 84.6-inch 4K TV with 52 ppi, a 48–144 Hz refresh range and variable refresh. The HVA panel offers 97% DCI-P3 and a 10-bit signal with HDR10, HDR10+, HDR10+ Gaming and Dolby Vision, and the built-in 60 W audio is tuned by Bang & Olufsen. At 36.29 kg this is a heavy set that calls for a strong wall bracket or floor stand and an extra pair of hands. It is a natural fit for sports nights and film marathons in a big, open lounge.

  • 84.6-inch HVA panel, 4K UHD at 52 ppi (QM7K)
  • 48–144 Hz refresh with variable refresh
  • 97% DCI-P3, 10-bit panel
  • HDR10, HDR10+, HDR10+ Gaming and Dolby Vision
  • 60 W audio by Bang & Olufsen, 36.29 kg

Pros & Cons

Pros
  • Cinema-scale picture for large rooms
  • 144 Hz range suits modern consoles and PC gaming
  • Bang & Olufsen audio tuning on a 60 W system
  • Strong HDR list including Dolby Vision and HDR10+ Gaming
  • Wide 97% DCI-P3 colour coverage for film and sport
Cons
  • 36.29 kg needs a strong mount and helpers
  • 52 ppi looks soft if you sit close
  • No stand adjustments are listed
  • VA-type panel loses some contrast and colour from off-centre seats

Score & Ratings

8.8/10 Excellent
Design
8
Display
9
Color
9
Performance
9
Connectivity
9
Television Identity & Market 6
Specification Value
Brand TCL
Series QM7K
Model 85QM7K
Full Product Name TCL 85QM7K
Model Year 2025
Available Colors Black
Screen Geometry & Format 8
Specification Value
Screen Size 84.6 in
Marketed Screen Size 84.6 in
Exact Diagonal 2147.83 mm / 214.783 cm / 84.5602 in / 7.0467 ft
Aspect Ratio 1.778:1 / 16:9
Active Display Width 1872 mm / 187.2 cm / 73.7008 in / 6.1417 ft
Active Display Height 1053 mm / 105.3 cm / 41.4567 in / 3.4547 ft
Screen-to-Body Ratio 95.91 %
3D Support No

84.6" Display Size (214.9 cm) 16:9

214.9cm 84.6" 187.2 cm / 73.7" 188.9 cm / 74.4" (overall unit) 105.3 cm 41.5" 108.8 cm 42.8" (overall)

Resolution at a Glance

3840×2160 This screen 8K — 7,680×4,320 4K — 3,840×2,160 FHD — 1,920×1,080 HD — 1,280×720 8.3 MP — 4× the pixels of Full HD
Panel Architecture & Light Control 6
Specification Value
Panel Manufacturer CSOT
Panel Type HVA
Quantum Dot Yes
Backlight Type Mini LED
Panel Bit Depth 10 bits
Display Colors 1073741824 colors / 30 bits
Surface Treatment & Viewing Layer 1
Specification Value
Screen Coating
  • Glossy
  • Precise Dimming Series
  • Local dimming zones - ???
  • CrystGlow HVA Panel
  • All-domain Halo Control Technology (Powerful Light-emitting Chip / Super Condensed Micro Lens / Super Micro-OD / Dynamic Lighting Bionic Algorithm / Transient Response / Bidirectional 16-bit)
  • Bionic Color Optimization Technology
  • Colorful Quantum Crystal
Resolution, Scaling & Signal 4
Specification Value
Native Resolution 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p
Pixel Density 52 ppi / 20 ppcm
Pixel Pitch 0.488 mm / 0.0488 cm / 0.0192 in / 0.0016 ft
Native 4K Support Yes
◑ Luminance, Blacks & Contrast 7
Specification Value
Peak Brightness 3000 cd/m²
Static Contrast 6000 : 1
Static Contrast Ratio 6000 : 1
Dynamic Contrast 30000000 : 1
Dynamic Contrast Ratio 30000000 : 1
Horizontal Viewing Angle 178 °
Vertical Viewing Angle 178 °
Color Reproduction & Calibration 3
Specification Value
DCI-P3 Coverage 97 %
Wide Color Gamut Yes
Quantum Dot Color Yes
RECOMMENDED VIEWING DISTANCE 85"
Viewing Distance = 1.5–2.5 × Screen Size
85" Centre screen at eye level (~42") 85" TV → 10.6–17.6 ft viewing distance

25° field of view — Comfortable, relaxed viewing.

HDR Formats & Tone Mapping 9
Specification Value
HDR Support
  • Dolby Vision IQ
  • Dolby Vision
  • HDR10+ Gaming
  • HDR10+
  • HDR10
  • HLG
HDR Formats
  • Dolby Vision IQ
  • Dolby Vision
  • HDR10+ Gaming
  • HDR10+
  • HDR10
  • HLG
HDR10 Yes
HDR10+ Yes
HDR10+ Gaming Yes
Dolby Vision Yes
Dolby Vision IQ Yes
HLG Yes
IMAX Enhanced Yes
Motion Processing & Response 8
Specification Value
Maximum Refresh Rate 144 Hz
Refresh Rate Range 48 Hz - 144 Hz
Vertical Frequency 48 Hz - 144 Hz
Frame Interpolation Motion Rate
Interpolation Technology Motion Rate
Interpolation Value 480
Interpolation Unit MR
Motion Processing Ai-MEMC / MEMC (Motion Estimation Motion Compensation)
Console, VRR & Game Tools 8
Specification Value
Variable Refresh Rate Yes
Auto Low Latency Mode Yes
High Frame Rate Yes
AMD FreeSync AMD FreeSync Premium Pro
Game Bar Yes
Game Master Game Master 2.0 with Game Bar
Game Accelerator Game Accelerator 288
Super Ultrawide GameView Yes
Picture Intelligence & AI 9
Specification Value
Picture Processor AIPQ Pro
AI Processor AIPQ Pro
AI Upscaling Yes
AI Contrast Yes
AI Color Yes
AI Clarity Yes
AI HDR Enhancement Yes
AI Scene Detection Yes
Ambient Mode Yes
Broadcast Tuners & Reception 6
Specification Value
Built-In TV Tuner
  • Yes
Tuner Configuration Analog (NTSC / PAL / SECAM) / ATSC / Clear QAM
Analog Tuner Yes
North American Digital Tuner ATSC
Clear QAM Yes
Cable/Antenna Input Yes
Compute, Memory & Storage 2
Specification Value
Processor Brand Name AIPQ Pro
Picture Processor AIPQ Pro
Smart Platform & System 2
Specification Value
Smart TV Yes
Operating System Google TV
Streaming & Entertainment 2
Specification Value
Art Gallery Yes
Ambient Mode Yes
Voice Assistants & Search 4
Specification Value
Voice Control Yes
Far-Field Voice Control Yes
Amazon Alexa Yes
Google Assistant Yes
HDMI Signal Interface 10
Specification Value
Total HDMI Ports
  • 4
HDMI 2.1 Ports
  • 2× HDMI 2.1
HDMI 2.0 Ports
  • 2× HDMI 2.0
HDMI CEC Yes
Enhanced Audio Return Channel Yes
Auto Low Latency Mode Yes
High Frame Rate Yes
Variable Refresh Rate Yes
HDCP Support Yes
HDCP Version 2.3

Ports & Connections

HDMI4USB-A2EtherneteARCOptical AudioHeadphoneAntenna / RFCable / SatelliteComposite / AV
USB, Audio & Legacy I/O 8
Specification Value
Total USB Ports
  • 2
USB-A 2.0 Ports
  • 1× USB 2.0
USB-A 3.0 Ports
  • 1× USB 3.0
Ethernet Port 1× RJ45
Optical Audio Output 1× S/PDIF
3.5 mm Audio Output Yes
Antenna Input Yes
Composite Input Yes
Wireless, LAN & Casting 7
Specification Value
LAN Yes
Wi-Fi Yes
Wi-Fi Standards 802.11a / 802.11b / 802.11g / 802.11n 5GHz / 802.11n / 802.11ac / 802.11ax
Bluetooth Bluetooth 5.4
Wi-Fi Direct Yes
DLNA Yes
Apple AirPlay Yes
Speaker Layout & Output 4
Specification Value
Built-In Speakers
  • 60 W
  • Audio by Bang & Olufsen
  • Beosonic
  • Dolby Atmos
  • Dolby Digital+
  • DTS Virtual: X
  • Hi-END class magnetic drive system
  • Precise signal control by DSP
  • Magnetic energy density increased by 4 times
Total Audio Output 60 W
Audio Brand Bang & Olufsen
DSP Signal Control Yes
Sound Formats & Enhancement 3
Specification Value
Dolby Atmos Yes
Dolby Digital Plus Yes
DTS Virtual:X Yes
Camera & Video Calling 1
Specification Value
Built-In Camera No
Photo File Compatibility 4
Specification Value
Image File Formats JPEG / GIF / PNG
JPEG Yes
PNG Yes
GIF Yes
Music Codec Compatibility 8
Specification Value
Audio Formats
  • 3GPP (3rd Generation Partnership Project, .3gp)
  • AAC (Advanced Audio Coding)
  • AAC+
  • aacPlus
  • HE-AAC v1
  • FLAC (Free Lossless Audio Codec, .flac)
  • M4A (MPEG-4 Audio, .m4a)
  • MP3 (MPEG-2 Audio Layer II, .mp3)
  • WMA (Windows Media Audio, .wma)
  • WAV (Waveform Audio File Format, .wav, .wave)
AAC Yes
HE-AAC Yes
FLAC Yes
MP3 Yes
M4A Yes
WMA Yes
WAV Yes
Video Container Compatibility 7
Specification Value
Video Containers
  • 3GPP (3rd Generation Partnership Project, .3gp)
  • AVI (Audio Video Interleaved, .avi)
  • DivX (.avi, .divx, .mkv)
  • H.263
  • H.264
  • MPEG-4 Part 10
  • AVC video
  • H.265
  • MPEG-H Part 2
  • HEVC
  • MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
  • MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
  • +4 more
    • MPEG-4
    • VP9
    • WMV (Windows Media Video, .wmv)
    • Xvid
3GPP Yes
AVI Yes
DivX Yes
MKV Yes
MP4 Yes
WMV Yes
Video Codec Compatibility 7
Specification Value
Video Codecs
  • 3GPP (3rd Generation Partnership Project, .3gp)
  • AVI (Audio Video Interleaved, .avi)
  • DivX (.avi, .divx, .mkv)
  • H.263
  • H.264
  • MPEG-4 Part 10
  • AVC video
  • H.265
  • MPEG-H Part 2
  • HEVC
  • MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
  • MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
  • +4 more
    • MPEG-4
    • VP9
    • WMV (Windows Media Video, .wmv)
    • Xvid
H.263 Yes
H.264 / AVC Yes
H.265 / HEVC Yes
MPEG-4 Yes
VP9 Yes
Xvid Yes
Panel-Only Size & Mass 5
Specification Value
Dimensions Without Stand
  • Width: 1889 mm (74.37 in)
  • Height: 1088 mm (42.83 in)
  • Depth: 58 mm (2.28 in)
Width Without Stand 1889 mm / 188.9 cm / 74.3701 in / 6.1975 ft
Height Without Stand 1088 mm / 108.8 cm / 42.8346 in / 3.5696 ft
Depth Without Stand 58 mm / 5.8 cm / 2.2835 in / 0.1903 ft
Weight Without Stand 34.1 kg / 75.18 lbs
Assembled TV Size & Mass 5
Specification Value
Dimensions With Stand
  • Width: 1889 mm (74.37 in)
  • Height: 1128 mm (44.41 in)
  • Depth: 381 mm (15 in)
Width With Stand 1889 mm / 188.9 cm / 74.3701 in / 6.1975 ft
Height With Stand 1128 mm / 112.8 cm / 44.4094 in / 3.7008 ft
Depth With Stand 381 mm / 38.1 cm / 15 in / 1.25 ft
Weight With Stand 36.29 kg / 80.01 lbs
Shipping Carton Measurements 5
Specification Value
Box Dimensions
  • Width: 2060 mm (81.1 in)
  • Height: 1260 mm (49.61 in)
  • Depth: 208 mm (8.19 in)
Box Width 2060 mm / 206 cm / 81.1024 in / 6.7585 ft
Box Height 1260 mm / 126 cm / 49.6063 in / 4.1339 ft
Box Depth 208 mm / 20.8 cm / 8.189 in / 0.6824 ft
Box Weight 51.39 kg / 113.3 lbs
Exterior Styling & Stand Footprint 4
Specification Value
Stand Depth 381 mm / 38.1 cm / 15 in / 1.25 ft
Chassis Color Black
Slim Design XL Collection / Ultra Slim Design
Cable Management Yes
Wall Mounting & Installation 9
Specification Value
VESA Mount 600 x 400 mm
VESA Interface 600 x 400 mm
VESA Size 600 x 400 mm
Removable Stand Yes
Height Adjustment No
Swivel Adjustment No
Tilt Adjustment No
Pivot Adjustment No
Cable Management Yes
Electrical Load & Efficiency 7
Specification Value
Power Input 100 V - 120 V / 220 V - 240 V
110V Input Range 100 V - 120 V
220V Input Range 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Average Power Consumption 385 W
Standby Consumption 0.5 W
Annual Energy Consumption 518 kWh
Environmental Operating Limits 4
Specification Value
Operating Temperature 5 °C - 35 °C / 41 °F - 95 °F
Operating Humidity 20 % - 80 %
Storage Temperature -15 °C - 45 °C / 5 °F - 113 °F
Storage Humidity 10 % - 90 %
Picture Feature Inventory 2
Specification Value
Quantum Dot Color Yes
IMAX Enhanced Yes
Gaming Validation & Compatibility 4
Specification Value
AMD FreeSync Certification AMD FreeSync Premium Pro
Game Bar Yes
ALLM Auto Low Latency Mode (ALLM)
VRR Yes
Regulatory & Industry Approvals 4
Specification Value
CE Yes
TÜV Flicker-Free Yes
TÜV Low Blue Light Yes
IMAX Enhanced Yes
In-the-Box Components 4
Specification Value
Remote Control Yes
Remote Type Voice remote control
Remote Voice Control Yes
Screen Size 84.6 in
⚡

Estimated Running Cost

Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.

Daily—
Monthly—
Annually—

Draws more power than 82% of the 447 comparable displays we track.

Reviews

NO REVIEWS YET Own this display? Your rating helps calibrate the score for everyone.
DISPLAYINPUT · INDEPENDENT · SPEC-BASED · NO SPONSORED PLACEMENT SHEET № 85QM7K
