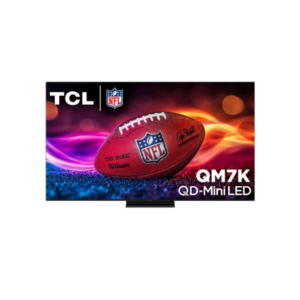

74.5″ TCL 75QM7K – Full Specifications
The TCL 75QM7K is a 74.5 in 3840 x 2160 (4K) Mini LED TV built around a HVA panel and Google TV.
tcl●TV
Display
74.5 in, HVA, Mini LED, 3840 x 2160 (4K)
74.5
Refresh rate
48 Hz - 144 Hz
48 Hz
Dimensions
1666 mm x 960 mm x 56.7 mm
1666
Weight
24.58 kg
24.58 k
Processor
AIPQ Pro
Overview
The TCL 75QM7K is a 74.5 in 3840 x 2160 (4K) Mini LED TV built around a HVA panel and Google TV. Its picture specifications stand out for 3000 cd/m² peak brightness, 7000 : 1 static contrast, 97 % DCI-P3, while HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ covers the HDR formats listed for this model. For gaming, the specification sheet lists 48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro, Game Accelerator 288, making the set better suited to high-frame-rate console or PC use than a basic 60 Hz television. TCL lists AIPQ Pro for picture processing, with Google TV handling apps and connected-TV features. Connectivity includes 4 HDMI ports, 2 HDMI 2.1, 2 USB ports, plus Wi-Fi, Ethernet and Bluetooth where listed in the source data. Audio is also more ambitious than a basic TV setup, with Bang & Olufsen tuning/features included in the supplied specification. For installation, it uses 300 x 300 mm VESA mounting pattern and weighs 26.58 kg / 58.
BrandTCLPanel TypeHVAResolution3840 x 2160 (4K)Refresh Rate48 Hz - 144 Hz
Key Highlights
- Mini LED backlighting is the core display technology listed for the 75QM7K
- 3000 cd/m² peak brightness gives the specification sheet a clear HDR brightness target
- 97 % DCI-P3 coverage supports wide-color HDR movies and games
- 48 Hz - 144 Hz with VRR/ALLM support targets high-frame-rate gaming
- Google TV provides the smart-TV app and casting platform
Who Should Buy the tcl 75QM7K
+ Best For
Console and PC gamers
48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro, Game Accelerator 288 supports smoother high-frame-rate play
Movie and streaming viewers
3840 x 2160 (4K) resolution and HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ cover modern video sources
HDR-focused buyers
the listed 3000 cd/m² peak brightness is unusually strong on paper
Large-screen buyers
the 74.5 in panel suits a room that can accommodate its physical dimensions
× Not Ideal For
Buyers who require published measured input lag
no exact input-lag figure is provided for this model
Multi-console HDMI 2.1 setups
only 2 HDMI 2.1 ports are explicitly listed
Display Performance
Refresh Rate
48 Hz - 144 Hz
High-refresh support suits modern gaming
HDR
HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ
Format support defines compatibility; brightness and local dimming determine the visible result
Gaming Performance
Refresh Rate48 Hz - 144 HzUseful for high-frame-rate consoles and PCs
VRR / Adaptive SyncVRRHelps reduce tearing as frame rate changes
HDR & Brightness Reality
The TCL 75QM7K accepts HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ. Its published peak brightness is 3000 cd/m². Static contrast is listed at 7000 : 1. These published specifications are useful indicators, but they do not replace measured HDR brightness, blooming and tone-mapping tests for this exact unit.
Connectivity & Ports
HDMI4 total; 2 HDMI 2.1; 2 HDMI 2.0Use HDMI 2.1 inputs for the highest listed gaming bandwidth
Audio OutOptical + 3.5 mmExternal sound systems can use the listed audio outputs
Real-World Use Cases
Google TV provides the smart-TV platform
HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ covers the HDR formats explicitly listed
48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro, Game Accelerator 288 defines the supported high-frame-rate/game feature set
300 x 300 mm and 26.58 kg / 58.6 lbs determine bracket requirements
Pros & Cons
Pros
- High published peak brightness of 3000 cd/m² strengthens HDR capability on paper
- 97 % DCI-P3 coverage supports wide-color HDR content
- 48 Hz 144 Hz refresh range with VRR/ALLM supports high-frame-rate gaming
- AMD FreeSync Premium Pro adds adaptive-sync support for compatible gaming hardware
- 2 HDMI 2.1 ports support modern console/PC connectivity
Cons
- No measured input-lag figure is published in the supplied specification
- Only 2 HDMI 2.1 ports are explicitly listed for high-bandwidth gaming devices
- Published specifications do not replace independent measurements for motion, blooming and color accuracy
Score & Ratings
8.6/10
Great
Television Identity & Market
6
| Specification | Value |
|---|---|
| Brand | TCL |
| Series | QM7K |
| Model | 75QM7K |
| Full Product Name | TCL 75QM7K |
| Model Year | 2025 |
| Available Colors | Black |
Screen Geometry & Format
8
| Specification | Value | What It Means |
|---|---|---|
| Screen Size | 74.5 in | 74.5 in determines viewing distance and furniture requirements. |
| Marketed Screen Size | 74.5 in | |
| Exact Diagonal | 1893 mm / 189.3 cm / 74.5276 in / 6.2106 ft | |
| Aspect Ratio | 1.778:1 / 16:9 | |
| Active Display Width | 1650.24 mm / 165.024 cm / 64.9701 in / 5.4142 ft | |
| Active Display Height | 928.26 mm / 92.826 cm / 36.5457 in / 3.0455 ft | |
| Screen-to-Body Ratio | 95.78 % | |
| 3D Support | No |
Panel Architecture & Light Control
6
| Specification | Value | What It Means |
|---|---|---|
| Panel Manufacturer | CSOT | |
| Panel Type | HVA | HVA describes the LCD panel family used by this model. |
| Quantum Dot | Yes | |
| Backlight Type | Mini LED | |
| Panel Bit Depth | 10 bits | |
| Display Colors | 1073741824 colors / 30 bits |
Surface Treatment & Viewing Layer
1
| Specification | Value |
|---|---|
| Screen Coating | Glossy / Precise Dimming Series / Local dimming zones - ??? / CrystGlow HVA Panel / All-domain Halo Control Technology (Powerful Light-emitting Chip / Super Condensed Micro Lens / Super Micro-OD / Dynamic Lighting Bionic Algorithm / Transient Response / Bidirectional 16-bit) / Bionic Color Optimization Technology / Colorful Quantum Crystal |
Resolution, Scaling & Signal
4
| Specification | Value |
|---|---|
| Native Resolution | 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p |
| Pixel Density | 59 ppi / 23 ppcm |
| Pixel Pitch | 0.43 mm / 0.043 cm / 0.0169 in / 0.0014 ft |
| Native 4K Support | Yes |
◑
Luminance, Blacks & Contrast
7
| Specification | Value | What It Means |
|---|---|---|
| Peak Brightness | 3000 cd/m² | 3000 cd/m² is the listed maximum light-output figure. |
| Static Contrast | 7000 : 1 | 7000 : 1 is the supplied native contrast figure. |
| Static Contrast Ratio | 7000 : 1 | |
| Dynamic Contrast | 30000000 : 1 | |
| Dynamic Contrast Ratio | 30000000 : 1 | |
| Horizontal Viewing Angle | 178 ° | |
| Vertical Viewing Angle | 178 ° |
Color Reproduction & Calibration
3
| Specification | Value |
|---|---|
| DCI-P3 Coverage | 97 % |
| Wide Color Gamut | Yes |
| Quantum Dot Color | Yes |
HDR Formats & Tone Mapping
9
| Specification | Value | What It Means |
|---|---|---|
| HDR Support | Dolby Vision IQDolby VisionHDR10+ GamingHDR10+HDR10HLG |
HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ means these signal formats are accepted by the television. |
| HDR Formats | Dolby Vision IQDolby VisionHDR10+ GamingHDR10+HDR10HLG |
|
| HDR10 | Yes | |
| HDR10+ | Yes | |
| HDR10+ Gaming | Yes | |
| Dolby Vision | Yes | |
| Dolby Vision IQ | Yes | |
| HLG | Yes | |
| IMAX Enhanced | Yes |
Motion Processing & Response
8
| Specification | Value |
|---|---|
| Maximum Refresh Rate | 144 Hz |
| Refresh Rate Range | 48 Hz - 144 Hz |
| Vertical Frequency | 48 Hz - 144 Hz |
| Frame Interpolation | Motion Rate |
| Interpolation Technology | Motion Rate |
| Interpolation Value | 480 |
| Interpolation Unit | MR |
| Motion Processing | Ai-MEMC / MEMC (Motion Estimation Motion Compensation) |
Console, VRR & Game Tools
8
| Specification | Value |
|---|---|
| Variable Refresh Rate | Yes |
| Auto Low Latency Mode | Yes |
| High Frame Rate | Yes |
| AMD FreeSync | AMD FreeSync Premium Pro |
| Game Bar | Yes |
| Game Master | Game Master 2.0 with Game Bar |
| Game Accelerator | Game Accelerator 288 |
| Super Ultrawide GameView | Yes |
Picture Intelligence & AI
9
| Specification | Value |
|---|---|
| Picture Processor | AIPQ Pro |
| AI Processor | AIPQ Pro |
| AI Upscaling | Yes |
| AI Contrast | Yes |
| AI Color | Yes |
| AI Clarity | Yes |
| AI HDR Enhancement | Yes |
| AI Scene Detection | Yes |
| Ambient Mode | Yes |
Broadcast Tuners & Reception
6
| Specification | Value |
|---|---|
| Built-In TV Tuner | Yes |
| Tuner Configuration | Analog (NTSC/PAL/SECAM) / ATSC / Clear QAM |
| Analog Tuner | Yes |
| North American Digital Tuner | ATSC |
| Clear QAM | Yes |
| Cable/Antenna Input | Yes |
Compute, Memory & Storage
2
| Specification | Value |
|---|---|
| Processor Brand Name | AIPQ Pro |
| Picture Processor | AIPQ Pro |
Smart Platform & System
2
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating System | Google TV |
Streaming & Entertainment
2
| Specification | Value |
|---|---|
| Art Gallery | Yes |
| Ambient Mode | Yes |
Voice Assistants & Search
4
| Specification | Value |
|---|---|
| Voice Control | Yes |
| Far-Field Voice Control | Yes |
| Amazon Alexa | Yes |
| Google Assistant | Yes |
HDMI Signal Interface
10
| Specification | Value |
|---|---|
| Total HDMI Ports | 4 |
| HDMI 2.1 Ports | 2× HDMI 2.1 |
| HDMI 2.0 Ports | 2× HDMI 2.0 |
| HDMI CEC | Yes |
| Enhanced Audio Return Channel | Yes |
| Auto Low Latency Mode | Yes |
| High Frame Rate | Yes |
| Variable Refresh Rate | Yes |
| HDCP Support | Yes |
| HDCP Version | 2.3 |
USB, Audio & Legacy I/O
8
| Specification | Value |
|---|---|
| Total USB Ports | 2 |
| USB-A 2.0 Ports | 1× USB 2.0 |
| USB-A 3.0 Ports | 1× USB 3.0 |
| Ethernet Port | 1× RJ45 |
| Optical Audio Output | 1× S/PDIF |
| 3.5 mm Audio Output | Yes |
| Antenna Input | Yes |
| Composite Input | Yes |
Wireless, LAN & Casting
7
| Specification | Value |
|---|---|
| LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a / 802.11b / 802.11g / 802.11n 5GHz / 802.11n / 802.11ac / 802.11ax |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi Direct | Yes |
| DLNA | Yes |
| Apple AirPlay | Yes |
Speaker Layout & Output
4
| Specification | Value |
|---|---|
| Built-In Speakers | 60 W / Audio by Bang & Olufsen / Beosonic / Dolby Atmos / Dolby Digital+ / DTS Virtual: X / Hi-END class magnetic drive system / Precise signal control by DSP / Magnetic energy density increased by 4 times |
| Total Audio Output | 60 W |
| Audio Brand | Bang & Olufsen |
| DSP Signal Control | Yes |
Sound Formats & Enhancement
3
| Specification | Value |
|---|---|
| Dolby Atmos | Yes |
| Dolby Digital Plus | Yes |
| DTS Virtual:X | Yes |
Camera & Video Calling
1
| Specification | Value |
|---|---|
| Built-In Camera | No |
Photo File Compatibility
4
| Specification | Value |
|---|---|
| Image File Formats | JPEG / GIF / PNG |
| JPEG | Yes |
| PNG | Yes |
| GIF | Yes |
Music Codec Compatibility
8
| Specification | Value |
|---|---|
| Audio Formats | 3GPP (3rd Generation Partnership Project, .3gp) / AAC (Advanced Audio Coding) / AAC+ / aacPlus / HE-AAC v1 / FLAC (Free Lossless Audio Codec, .flac) / M4A (MPEG-4 Audio, .m4a) / MP3 (MPEG-2 Audio Layer II, .mp3) / WMA (Windows Media Audio, .wma) / WAV (Waveform Audio File Format, .wav, .wave) |
| AAC | Yes |
| HE-AAC | Yes |
| FLAC | Yes |
| MP3 | Yes |
| M4A | Yes |
| WMA | Yes |
| WAV | Yes |
Video Container Compatibility
7
| Specification | Value |
|---|---|
| Video Containers | 3GPP (3rd Generation Partnership Project, .3gp) / AVI (Audio Video Interleaved, .avi) / DivX (.avi, .divx, .mkv) / H.263 / H.264 / MPEG-4 Part 10 / AVC video / H.265 / MPEG-H Part 2 / HEVC / MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks) / MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v) / MPEG-4 / VP9 / WMV (Windows Media Video, .wmv) / Xvid |
| 3GPP | Yes |
| AVI | Yes |
| DivX | Yes |
| MKV | Yes |
| MP4 | Yes |
| WMV | Yes |
Video Codec Compatibility
7
| Specification | Value |
|---|---|
| Video Codecs | 3GPP (3rd Generation Partnership Project, .3gp) / AVI (Audio Video Interleaved, .avi) / DivX (.avi, .divx, .mkv) / H.263 / H.264 / MPEG-4 Part 10 / AVC video / H.265 / MPEG-H Part 2 / HEVC / MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks) / MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v) / MPEG-4 / VP9 / WMV (Windows Media Video, .wmv) / Xvid |
| H.263 | Yes |
| H.264 / AVC | Yes |
| H.265 / HEVC | Yes |
| MPEG-4 | Yes |
| VP9 | Yes |
| Xvid | Yes |
Panel-Only Size & Mass
5
| Specification | Value |
|---|---|
| Dimensions Without Stand | 1666 mm / 166.6 cm / 65.5906 in / 5.4659 ft x 960 mm / 96 cm / 37.7953 in / 3.1496 ft x 56.7 mm / 5.67 cm / 2.2323 in / 0.186 ft (W x H x D) |
| Width Without Stand | 1666 mm / 166.6 cm / 65.5906 in / 5.4659 ft |
| Height Without Stand | 960 mm / 96 cm / 37.7953 in / 3.1496 ft |
| Depth Without Stand | 56.7 mm / 5.67 cm / 2.2323 in / 0.186 ft |
| Weight Without Stand | 24.58 kg / 54.19 lbs |
Assembled TV Size & Mass
5
| Specification | Value |
|---|---|
| Dimensions With Stand | 1666 mm / 166.6 cm / 65.5906 in / 5.4659 ft x 995 mm / 99.5 cm / 39.1732 in / 3.2644 ft x 367 mm / 36.7 cm / 14.4488 in / 1.2041 ft (W x H x D) |
| Width With Stand | 1666 mm / 166.6 cm / 65.5906 in / 5.4659 ft |
| Height With Stand | 995 mm / 99.5 cm / 39.1732 in / 3.2644 ft |
| Depth With Stand | 367 mm / 36.7 cm / 14.4488 in / 1.2041 ft |
| Weight With Stand | 26.58 kg / 58.6 lbs |
Shipping Carton Measurements
5
| Specification | Value |
|---|---|
| Box Dimensions | 1860 mm / 186 cm / 73.2283 in / 6.1024 ft x 1125 mm / 112.5 cm / 44.2913 in / 3.6909 ft x 177.8 mm / 17.78 cm / 7 in / 0.5833 ft (W x H x D) |
| Box Width | 1860 mm / 186 cm / 73.2283 in / 6.1024 ft |
| Box Height | 1125 mm / 112.5 cm / 44.2913 in / 3.6909 ft |
| Box Depth | 177.8 mm / 17.78 cm / 7 in / 0.5833 ft |
| Box Weight | 36.6 kg / 80.69 lbs |
Exterior Styling & Stand Footprint
4
| Specification | Value |
|---|---|
| Stand Depth | 368.3 mm / 36.83 cm / 14.5 in / 1.2083 ft |
| Chassis Color | Black |
| Slim Design | Flat-thin Design |
| Cable Management | Yes |
Wall Mounting & Installation
9
| Specification | Value | What It Means |
|---|---|---|
| VESA Mount | Yes | 300 x 300 mm is the bracket-hole pattern to match when wall mounting. |
| VESA Interface | 300 x 300 mm | |
| VESA Size | 300 x 300 mm | |
| Removable Stand | Yes | |
| Height Adjustment | No | |
| Swivel Adjustment | No | |
| Tilt Adjustment | No | |
| Pivot Adjustment | No | |
| Cable Management | Yes |
Electrical Load & Efficiency
7
| Specification | Value |
|---|---|
| Power Input | 100 V - 120 V / 220 V - 240 V |
| 110V Input Range | 100 V - 120 V |
| 220V Input Range | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Average Power Consumption | 370 W |
| Standby Consumption | 0.5 W |
| Annual Energy Consumption | 456 kWh |
Environmental Operating Limits
4
| Specification | Value |
|---|---|
| Operating Temperature | 5 °C - 35 °C / 41 °F - 95 °F |
| Operating Humidity | 20 % - 80 % |
| Storage Temperature | -15 °C - 45 °C / 5 °F - 113 °F |
| Storage Humidity | 10 % - 90 % |
Picture Feature Inventory
2
| Specification | Value |
|---|---|
| Quantum Dot Color | Yes |
| IMAX Enhanced | Yes |
Gaming Validation & Compatibility
4
| Specification | Value |
|---|---|
| AMD FreeSync Certification | AMD FreeSync Premium Pro |
| Game Bar | Yes |
| ALLM | Yes |
| VRR | Yes |
Regulatory & Industry Approvals
4
| Specification | Value |
|---|---|
| CE | Yes |
| TÜV Flicker-Free | Yes |
| TÜV Low Blue Light | Yes |
| IMAX Enhanced | Yes |
In-the-Box Components
4
| Specification | Value | What It Means |
|---|---|---|
| Remote Control | Yes | |
| Remote Type | Voice remote control | |
| Remote Voice Control | Yes | |
| Screen Size | 74.5 in | 74.5 in determines viewing distance and furniture requirements. |
Frequently Asked Questions
01 What display does the TCL 75QM7K use? +
It uses a 74.5 in HVA panel with Mini LED and 3840 x 2160 (4K) resolution.
02 How bright is the TCL 75QM7K? +
Peak brightness is listed at 3000 cd/m².
03 Is the TCL 75QM7K good for gaming? +
It lists 48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro, Game Accelerator 288. No exact measured input-lag figure is supplied.
04 Which HDR formats does the TCL 75QM7K support? +
The source lists HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ.
05 What should be checked before installing the TCL 75QM7K? +
Confirm the 300 x 300 mm mount pattern, the 26.58 kg / 58.6 lbs weight with stand and the cabinet/wall space required for this screen size.
Reviews
DISPLAYINPUT · INDEPENDENT · SPEC-BASED · NO SPONSORED PLACEMENT
SHEET № 75QM7K
