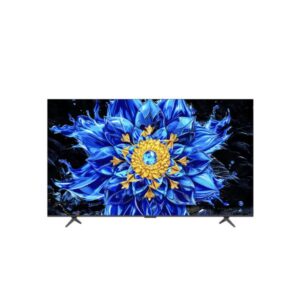

74.5″ TCL 75P8L – Full Specifications
Bigger living rooms that want 144 Hz gaming without paying for a flagship can look at the TCL 75P8L (74.5 in), a 75-class Mini LED Google TV.
tcl●TV
Display
74.5 in, HVA, Mini LED, 3840 x 2160 (4K)
74.5
Refresh rate
48 Hz - 144 Hz
48 Hz
Dimensions
1666 x 958 x 69.5 mm
1666
Weight
23.6 kg
23.6 k
Processor
AiPQ Pro
Overview
Bigger living rooms that want 144 Hz gaming without paying for a flagship can look at the TCL 75P8L (74.5 in), a 75-class Mini LED Google TV. Its HVA panel shows 3840 × 2160 at 59 ppi over a 48-144 Hz range with VRR and AMD FreeSync, quantum dot colour and 93 percent DCI-P3. Two of four HDMI inputs are HDMI 2.1. It weighs 24 kg with the stand and 23.6 kg without it, mounts on 400 × 400 mm VESA and draws 105 W typically, an energy class E.
- 74.5 in HVA, Mini LED, 59 ppi
- 48-144 Hz, VRR, FreeSync
- Quantum dot, 93 percent DCI-P3
- 4 HDMI (2 × 2.1), 1 × USB
- 24 kg with stand, 400 × 400 VESA
Pros & Cons
Pros
- Mini LED backlight at 75 inches
- Light 23.6 kg panel for its size
- 75P8L gives two HDMI 2.1 console ports
- Dolby Vision, HDR10+ and Atmos support
- Slim unibody design suits wall mounting
Cons
- Typical draw reaches 105 W for 75 inches
- 75P8L shares one USB socket among accessories
- Stereo speakers are rated 2 × 10 W
- VA-type panel loses some contrast and colour from off-centre seats
Score & Ratings
8.0/10
Great
Television Identity & Market
7
| Specification | Value |
|---|---|
| Brand | TCL |
| Series | P8L |
| Model | 75P8L |
| Model Alias | 75P8LX1 |
| Full Product Name | TCL 75P8L |
| Model Year | 2026 |
| Available Colors | Brushed Titanium |
Screen Geometry & Format
8
| Specification | Value |
|---|---|
| Screen Size | 74.5 in |
| Marketed Screen Size | 74.5 in |
| Exact Diagonal | 1893 mm / 189.3 cm / 74.5276 in / 6.2106 ft |
| Aspect Ratio | 1.778:1 / 16:9 |
| Active Display Width | 1650.24 mm / 165.024 cm / 64.9701 in / 5.4142 ft |
| Active Display Height | 928.26 mm / 92.826 cm / 36.5457 in / 3.0455 ft |
| Display Area | 95.98 % |
| 3D Support | No |
74.5" Display Size (189.2 cm) 16:9
Resolution at a Glance
Panel Architecture & Light Control
8
| Specification | Value |
|---|---|
| Panel Manufacturer | CSOT |
| Panel Type | HVA |
| Quantum Dot | Yes |
| Quantum Dot Technology | Super Quantum Dot (Super QLED) |
| Backlight Type | Mini LED |
| Panel Bit Depth | 10 bits (8 bits + FRC) |
| FRC | Yes |
| Display Colors | 1073741824 colors / 30 bits |
Resolution, Scaling & Signal
4
| Specification | Value |
|---|---|
| Native Resolution | 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p |
| Pixel Density | 59 ppi / 23 ppcm |
| Pixel Pitch | 0.43 mm / 0.043 cm / 0.0169 in / 0.0014 ft |
| Native 4K Support | Yes |
◑
Luminance, Blacks & Contrast
6
| Specification | Value |
|---|---|
| Typical Brightness | 450 cd/m² |
| Static Contrast | 6500 : 1 |
| Static Contrast Ratio | 6500 : 1 |
| Viewing Angles | 178 ° / 178 ° |
| Horizontal Viewing Angle | 178 ° |
| Vertical Viewing Angle | 178 ° |
Color Reproduction & Calibration
3
| Specification | Value |
|---|---|
| DCI-P3 Coverage | 93 % |
| Wide Color Gamut | Yes |
| Quantum Dot Color | Yes |
RECOMMENDED VIEWING DISTANCE
75"
Viewing Distance = 1.5–2.5 × Screen Size
25° field of view — Comfortable, relaxed viewing.
HDR Formats & Tone Mapping
6
| Specification | Value |
|---|---|
| HDR Support |
|
| HDR Formats |
|
| HDR10 | Yes |
| HDR10+ | Yes |
| Dolby Vision | Yes |
| HLG | Yes |
Motion Processing & Response
5
| Specification | Value |
|---|---|
| Maximum Refresh Rate | 48 Hz - 144 Hz |
| Refresh Rate Range | 48 Hz - 144 Hz |
| Vertical Frequency | 48 Hz - 144 Hz |
| Motion Processing | MEMC (Motion Estimation Motion Compensation) |
| Motion Estimation | Yes |
Console, VRR & Game Tools
7
| Specification | Value |
|---|---|
| Variable Refresh Rate | Yes |
| Auto Low Latency Mode | Yes |
| High Frame Rate | Yes |
| AMD FreeSync | AMD FreeSync |
| Game Bar | AI Gaming with Game Bar |
| Game Master | Yes |
| Game Accelerator | Game Accelerator 288 |
Picture Intelligence & AI
6
| Specification | Value |
|---|---|
| AI Contrast | Yes |
| AI Color | Yes |
| AI Clarity | Yes |
| AI HDR Enhancement | Yes |
| AI Scene Detection | Yes |
| Art Mode | AI Art |
Broadcast Tuners & Reception
8
| Specification | Value |
|---|---|
| Built-In TV Tuner |
|
| Tuner Configuration | Analog (NTSC / PAL / SECAM) / DVB-T / DVB-T2 / DVB-C / DVB-S / DVB-S2 |
| Analog Tuner | NTSC / PAL / SECAM |
| Digital Terrestrial Tuner | DVB-T |
| Digital Terrestrial Tuner 2 | DVB-T2 |
| Digital Cable Tuner | DVB-C |
| Digital Satellite Tuner | DVB-S |
| Digital Satellite Tuner 2 | DVB-S2 |
Compute, Memory & Storage
11
| Specification | Value |
|---|---|
| Processor Brand Name | AiPQ Pro |
| System on Chip | MediaTek Pentonic 700 (MT9653) |
| SoC Model | MediaTek Pentonic 700 (MT9653) |
| CPU Architecture | 2x ARM Cortex-A73, 2x ARM Cortex-A73 |
| CPU Cores | 4 |
| CPU Frequency | 1390 MHz |
| GPU | ARM Mali-G52 |
| GPU Cores | 2 |
| RAM Capacity | 3 GB |
| RAM Type | LPDDR4 |
| Internal Storage | 32 GB / eMMC 5.1 |
Smart Platform & System
2
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating System | Google TV |
Streaming & Entertainment
6
| Specification | Value |
|---|---|
| Netflix | Yes |
| YouTube | Yes |
| Prime Video | Yes |
| Disney+ | Yes |
| Art Gallery | Yes |
| Ambient Mode | Yes |
Voice Assistants & Search
2
| Specification | Value |
|---|---|
| Amazon Alexa | Yes |
| Google Assistant | Yes |
HDMI Signal Interface
11
| Specification | Value |
|---|---|
| Total HDMI Ports |
|
| HDMI 2.1 Ports |
|
| HDMI 2.0 Ports |
|
| HDMI CEC | Yes |
| Audio Return Channel | Yes |
| Enhanced Audio Return Channel | Yes |
| Auto Low Latency Mode | Yes |
| High Frame Rate | Yes |
| Variable Refresh Rate | Yes |
| HDCP Support | Yes |
| HDCP Version | 2.3 |
Ports & Connections
USB, Audio & Legacy I/O
7
| Specification | Value |
|---|---|
| Total USB Ports |
|
| USB-A 3.0 Ports |
|
| Ethernet Port | 1 x RJ45 |
| Optical Audio Output | 1 x Optical |
| Satellite Input | 1 x F-type |
| Antenna Input | 1 x RF |
| Common Interface Slot | 1 x CI+ 1.4 |
Wireless, LAN & Casting
9
| Specification | Value |
|---|---|
| LAN | Yes |
| Wi-Fi | Wi-Fi |
| Wi-Fi Standards | 802.11a / 802.11b / 802.11g / 802.11n / 802.11ac |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi Direct | Yes |
| DLNA | Yes |
| Apple AirPlay | Yes |
| Chromecast | Yes |
| Google Cast | Yes |
Speaker Layout & Output
9
| Specification | Value |
|---|---|
| Built-In Speakers | 2 x 10 W |
| Speaker Configuration | 2.1 CH |
| Speaker Channels | 2.1 CH |
| Main Speakers | 2 x 10 W |
| Built-In Subwoofer | 1 x 15 W / 2.1 CH / 35W / Dolby Atmos / DTS Virtual:X / Onkyo Sound System |
| Subwoofer Configuration | 1 x 15 W / 2.1 CH / 35W / Dolby Atmos / DTS Virtual:X / Onkyo Sound System |
| Total Audio Output | 35 W |
| Total Speaker Output | 35 W |
| Audio Brand | Onkyo |
Sound Formats & Enhancement
2
| Specification | Value |
|---|---|
| Dolby Atmos | Yes |
| DTS Virtual:X | Yes |
Camera & Video Calling
1
| Specification | Value |
|---|---|
| Built-In Camera | No |
Accessibility & Assisted Use
1
| Specification | Value |
|---|---|
| Low Blue Light Mode | Yes |
Photo File Compatibility
4
| Specification | Value |
|---|---|
| Image File Formats | JPEG / GIF / PNG |
| JPEG | Yes |
| PNG | Yes |
| GIF | Yes |
Music Codec Compatibility
8
| Specification | Value |
|---|---|
| Audio Formats |
|
| AAC | Yes |
| HE-AAC | Yes |
| FLAC | Yes |
| MP3 | Yes |
| M4A | Yes |
| WMA | Yes |
| WAV | Yes |
Video Container Compatibility
7
| Specification | Value |
|---|---|
| Video Containers |
|
| 3GPP | Yes |
| AVI | Yes |
| DivX | Yes |
| MKV | Yes |
| MP4 | Yes |
| WMV | Yes |
Video Codec Compatibility
7
| Specification | Value |
|---|---|
| Video Codecs |
|
| H.263 | Yes |
| H.264 / AVC | Yes |
| H.265 / HEVC | Yes |
| MPEG-4 | Yes |
| VP9 | Yes |
| Xvid | Yes |
Panel-Only Size & Mass
5
| Specification | Value |
|---|---|
| Dimensions Without Stand | 1666 x 958 x 69.5 mm |
| Width Without Stand | 1666 mm / 166.6 cm / 65.5906 in / 5.4659 ft |
| Height Without Stand | 958 mm / 95.8 cm / 37.7165 in / 3.143 ft |
| Depth Without Stand | 69.5 mm / 6.95 cm / 2.7362 in / 0.228 ft |
| Weight Without Stand | 23.6 kg / 52.03 lbs |
Assembled TV Size & Mass
5
| Specification | Value |
|---|---|
| Dimensions With Stand | 1666 x 1028 x 343 mm |
| Width With Stand | 1666 mm / 166.6 cm / 65.5906 in / 5.4659 ft |
| Height With Stand | 1028 mm / 102.8 cm / 40.4724 in / 3.3727 ft |
| Depth With Stand | 343 mm / 34.3 cm / 13.5039 in / 1.1253 ft |
| Weight With Stand | 24 kg / 52.91 lbs |
Shipping Carton Measurements
5
| Specification | Value |
|---|---|
| Box Dimensions | 1850 x 1125 x 178 mm |
| Box Width | 1850 mm / 185 cm / 72.8346 in / 6.0696 ft |
| Box Height | 1125 mm / 112.5 cm / 44.2913 in / 3.6909 ft |
| Box Depth | 178 mm / 17.8 cm / 7.0079 in / 0.584 ft |
| Box Weight | 34.2 kg / 75.4 lbs |
Exterior Styling & Stand Footprint
6
| Specification | Value |
|---|---|
| Stand Width | 1350 mm / 135 cm / 53.1496 in / 4.4291 ft |
| Stand Depth | 343 mm / 34.3 cm / 13.5039 in / 1.1253 ft |
| Stand Footprint | 1350 mm x 343 mm |
| Chassis Color | Brushed Titanium |
| Design Name | Slim Unibody Design |
| Slim Design | Yes |
Wall Mounting & Installation
8
| Specification | Value |
|---|---|
| VESA Mount | 400 x 400 mm |
| VESA Interface | 400 x 400 mm |
| VESA Size | 400 x 400 mm |
| Removable Stand | Yes |
| Height Adjustment | No |
| Swivel Adjustment | No |
| Tilt Adjustment | No |
| Pivot Adjustment | No |
Electrical Load & Efficiency
11
| Specification | Value |
|---|---|
| Power Input | 100 V - 120 V / 220 V - 240 V |
| 110V Input Range | 100 V - 120 V |
| 220V Input Range | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Typical Power Consumption | 105 W |
| Average Power Consumption | 105 W |
| Maximum Power Consumption | 220 W |
| Sleep Consumption | 0.5 W |
| Standby Consumption | 0.5 W |
| Energy Efficiency Class | E |
| Ambient Light Sensor | Yes |
Environmental Operating Limits
4
| Specification | Value |
|---|---|
| Operating Temperature | 5 °C - 35 °C / 41 °F - 95 °F |
| Operating Humidity | 20 % - 80 % |
| Storage Temperature | -15 °C - 45 °C / 5 °F - 113 °F |
| Storage Humidity | 10 % - 90 % |
Gaming Validation & Compatibility
2
| Specification | Value |
|---|---|
| ALLM | Auto Low Latency Mode (ALLM) |
| VRR | Yes |
In-the-Box Components
4
| Specification | Value |
|---|---|
| Remote Control | Voice remote control |
| Remote Type | Voice remote control |
| Remote Voice Control | Yes |
| Screen Size | 74.5 in |
⚡
Estimated Running Cost
Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.
Daily—
Monthly—
Annually—
Draws more power than 82% of the 447 comparable displays we track.
