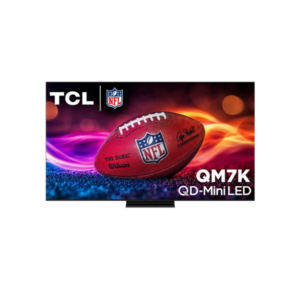

tcl TCL 55QM7K – Full Specifications TV
RATED
Excellent
8.6/10

54.6″ TCL 55QM7K – Full Specifications

Bang & Olufsen tuning is the unusual feature of the TCL 55QM7K, a 54.6-inch 4K TV for living rooms where sound matters as much as the picture.

54.6″ · 1.778:1 / 16:9 · MODEL YEAR 2025
tcl●TV
tcl TV
Add as preferred source
Display
54.6 in, HVA, Mini LED, 3840 x 2160 (4K)
54.6
Refresh rate
48 Hz - 144 Hz
48 Hz
Dimensions
1226.8 mm x 711.2 mm x 55.88 mm
1226.8
Weight
13.29 kg
13.29 k
Processor
AIPQ Pro

Overview

Bang & Olufsen tuning is the unusual feature of the TCL 55QM7K, a 54.6-inch 4K TV for living rooms where sound matters as much as the picture. The HVA panel runs at 80 ppi with a 48–144 Hz range, variable refresh, 97% DCI-P3 and a 10-bit signal, with HDR10, HDR10+, HDR10+ Gaming and Dolby Vision support. A 60 W audio system is built in, and the TV weighs 14.51 kg. It is a good match for gaming and film nights in a mid-size room.

  • 54.6-inch HVA panel, 4K UHD at 80 ppi (QM7K)
  • 48–144 Hz refresh with variable refresh
  • 97% DCI-P3, 10-bit panel
  • HDR10, HDR10+, HDR10+ Gaming and Dolby Vision
  • 60 W audio by Bang & Olufsen, 14.51 kg

Pros & Cons

Pros
  • 60 W Bang & Olufsen audio is strong for a 55-inch set
  • 144 Hz range for consoles and PC gaming
  • 97% DCI-P3 gives films rich colour
  • Dolby Vision plus HDR10+ Gaming support
  • Reasonable weight for a 55-inch TV
Cons
  • VA-type panels narrow the viewing angle off-axis
  • Stand offers no listed height or swivel
  • 55 inches is modest for a large lounge
  • Mini LED backlights can show some blooming around bright objects on dark scenes

Score & Ratings

8.6/10 Excellent
Design
7
Display
9
Color
9
Performance
9
Connectivity
9
Television Identity & Market 6
Specification Value
Brand TCL
Series QM7K
Model 55QM7K
Full Product Name TCL 55QM7K
Model Year 2025
Available Colors Black
Screen Geometry & Format 8
Specification Value
Screen Size 54.6 in
Marketed Screen Size 54.6 in
Exact Diagonal 1388 mm / 138.8 cm / 54.6457 in / 4.5538 ft
Aspect Ratio 1.778:1 / 16:9
Active Display Width 1209.6 mm / 120.96 cm / 47.622 in / 3.9685 ft
Active Display Height 680.4 mm / 68.04 cm / 26.7874 in / 2.2323 ft
Screen-to-Body Ratio 94.33 %
3D Support No

54.6" Display Size (138.7 cm) 16:9

138.7cm 54.6" 121 cm / 47.6" 122.7 cm / 48.3" (overall unit) 68 cm 26.8" 71.1 cm 28" (overall)

Resolution at a Glance

3840×2160 This screen 8K — 7,680×4,320 4K — 3,840×2,160 FHD — 1,920×1,080 HD — 1,280×720 8.3 MP — 4× the pixels of Full HD
Panel Architecture & Light Control 6
Specification Value
Panel Manufacturer CSOT
Panel Type HVA
Quantum Dot Yes
Backlight Type Mini LED
Panel Bit Depth 10 bits
Display Colors 1073741824 colors / 30 bits
Surface Treatment & Viewing Layer 1
Specification Value
Screen Coating
  • Glossy
  • Precise Dimming Series
  • Local dimming zones - ???
  • CrystGlow HVA Panel
  • All-domain Halo Control Technology (Powerful Light-emitting Chip / Super Condensed Micro Lens / Super Micro-OD / Dynamic Lighting Bionic Algorithm / Transient Response / Bidirectional 16-bit)
  • Bionic Color Optimization Technology
  • Colorful Quantum Crystal
Resolution, Scaling & Signal 4
Specification Value
Native Resolution 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p
Pixel Density 80 ppi / 31 ppcm
Pixel Pitch 0.315 mm / 0.0315 cm / 0.0124 in / 0.001 ft
Native 4K Support Yes
◑ Luminance, Blacks & Contrast 7
Specification Value
Peak Brightness 2600 cd/m²
Static Contrast 6500 : 1
Static Contrast Ratio 6500 : 1
Dynamic Contrast 30000000 : 1
Dynamic Contrast Ratio 30000000 : 1
Horizontal Viewing Angle 178 °
Vertical Viewing Angle 178 °
Color Reproduction & Calibration 3
Specification Value
DCI-P3 Coverage 97 %
Wide Color Gamut Yes
Quantum Dot Color Yes
RECOMMENDED VIEWING DISTANCE 55"
Viewing Distance = 1.5–2.5 × Screen Size
55" Centre screen at eye level (~42") 55" TV → 6.8–11.4 ft viewing distance

25° field of view — Comfortable, relaxed viewing.

HDR Formats & Tone Mapping 9
Specification Value
HDR Support
  • Dolby Vision IQ
  • Dolby Vision
  • HDR10+ Gaming
  • HDR10+
  • HDR10
  • HLG
HDR Formats
  • Dolby Vision IQ
  • Dolby Vision
  • HDR10+ Gaming
  • HDR10+
  • HDR10
  • HLG
HDR10 Yes
HDR10+ Yes
HDR10+ Gaming Yes
Dolby Vision Yes
Dolby Vision IQ Yes
HLG Yes
IMAX Enhanced Yes
Motion Processing & Response 8
Specification Value
Maximum Refresh Rate 144 Hz
Refresh Rate Range 48 Hz - 144 Hz
Vertical Frequency 48 Hz - 144 Hz
Frame Interpolation Motion Rate
Interpolation Technology Motion Rate
Interpolation Value 480
Interpolation Unit MR
Motion Processing Ai-MEMC / MEMC (Motion Estimation Motion Compensation)
Console, VRR & Game Tools 8
Specification Value
Variable Refresh Rate Yes
Auto Low Latency Mode Yes
High Frame Rate Yes
AMD FreeSync AMD FreeSync Premium Pro
Game Bar Yes
Game Master Game Master 2.0 with Game Bar
Game Accelerator Game Accelerator 240
Super Ultrawide GameView Yes
Picture Intelligence & AI 9
Specification Value
Picture Processor AIPQ Pro
AI Processor AIPQ Pro
AI Upscaling Yes
AI Contrast Yes
AI Color Yes
AI Clarity Yes
AI HDR Enhancement Yes
AI Scene Detection Yes
Ambient Mode Yes
Broadcast Tuners & Reception 6
Specification Value
Built-In TV Tuner
  • Yes
Tuner Configuration Analog (NTSC / PAL / SECAM) / ATSC / Clear QAM
Analog Tuner Yes
North American Digital Tuner ATSC
Clear QAM Yes
Cable/Antenna Input Yes
Compute, Memory & Storage 2
Specification Value
Processor Brand Name AIPQ Pro
Picture Processor AIPQ Pro
Smart Platform & System 2
Specification Value
Smart TV Yes
Operating System Google TV
Streaming & Entertainment 2
Specification Value
Art Gallery Yes
Ambient Mode Yes
Voice Assistants & Search 4
Specification Value
Voice Control Yes
Far-Field Voice Control Yes
Amazon Alexa Yes
Google Assistant Yes
HDMI Signal Interface 10
Specification Value
Total HDMI Ports
  • 4
HDMI 2.1 Ports
  • 2× HDMI 2.1
HDMI 2.0 Ports
  • 2× HDMI 2.0
HDMI CEC Yes
Enhanced Audio Return Channel Yes
Auto Low Latency Mode Yes
High Frame Rate Yes
Variable Refresh Rate Yes
HDCP Support Yes
HDCP Version 2.3

Ports & Connections

HDMI4USB-A2EtherneteARCOptical AudioHeadphoneAntenna / RFCable / SatelliteComposite / AV
USB, Audio & Legacy I/O 8
Specification Value
Total USB Ports
  • 2
USB-A 2.0 Ports
  • 1× USB 2.0
USB-A 3.0 Ports
  • 1× USB 3.0
Ethernet Port 1× RJ45
Optical Audio Output 1× S/PDIF
3.5 mm Audio Output Yes
Antenna Input Yes
Composite Input Yes
Wireless, LAN & Casting 7
Specification Value
LAN Yes
Wi-Fi Yes
Wi-Fi Standards 802.11a / 802.11b / 802.11g / 802.11n 5GHz / 802.11n / 802.11ac / 802.11ax
Bluetooth Bluetooth 5.4
Wi-Fi Direct Yes
DLNA Yes
Apple AirPlay Yes
Speaker Layout & Output 4
Specification Value
Built-In Speakers
  • 60 W
  • Audio by Bang & Olufsen
  • Beosonic
  • Dolby Atmos
  • Dolby Digital+
  • DTS Virtual: X
  • Hi-END class magnetic drive system
  • Precise signal control by DSP
  • Magnetic energy density increased by 4 times
Total Audio Output 60 W
Audio Brand Bang & Olufsen
DSP Signal Control Yes
Sound Formats & Enhancement 3
Specification Value
Dolby Atmos Yes
Dolby Digital Plus Yes
DTS Virtual:X Yes
Camera & Video Calling 1
Specification Value
Built-In Camera No
Photo File Compatibility 4
Specification Value
Image File Formats JPEG / GIF / PNG
JPEG Yes
PNG Yes
GIF Yes
Music Codec Compatibility 8
Specification Value
Audio Formats
  • 3GPP (3rd Generation Partnership Project, .3gp)
  • AAC (Advanced Audio Coding)
  • AAC+
  • aacPlus
  • HE-AAC v1
  • FLAC (Free Lossless Audio Codec, .flac)
  • M4A (MPEG-4 Audio, .m4a)
  • MP3 (MPEG-2 Audio Layer II, .mp3)
  • WMA (Windows Media Audio, .wma)
  • WAV (Waveform Audio File Format, .wav, .wave)
AAC Yes
HE-AAC Yes
FLAC Yes
MP3 Yes
M4A Yes
WMA Yes
WAV Yes
Video Container Compatibility 7
Specification Value
Video Containers
  • 3GPP (3rd Generation Partnership Project, .3gp)
  • AVI (Audio Video Interleaved, .avi)
  • DivX (.avi, .divx, .mkv)
  • H.263
  • H.264
  • MPEG-4 Part 10
  • AVC video
  • H.265
  • MPEG-H Part 2
  • HEVC
  • MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
  • MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
  • +4 more
    • MPEG-4
    • VP9
    • WMV (Windows Media Video, .wmv)
    • Xvid
3GPP Yes
AVI Yes
DivX Yes
MKV Yes
MP4 Yes
WMV Yes
Video Codec Compatibility 7
Specification Value
Video Codecs
  • 3GPP (3rd Generation Partnership Project, .3gp)
  • AVI (Audio Video Interleaved, .avi)
  • DivX (.avi, .divx, .mkv)
  • H.263
  • H.264
  • MPEG-4 Part 10
  • AVC video
  • H.265
  • MPEG-H Part 2
  • HEVC
  • MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
  • MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
  • +4 more
    • MPEG-4
    • VP9
    • WMV (Windows Media Video, .wmv)
    • Xvid
H.263 Yes
H.264 / AVC Yes
H.265 / HEVC Yes
MPEG-4 Yes
VP9 Yes
Xvid Yes
Panel-Only Size & Mass 5
Specification Value
Dimensions Without Stand
  • Width: 1226.8 mm (48.3 in)
  • Height: 711.2 mm (28 in)
  • Depth: 55.88 mm (2.2 in)
Width Without Stand 1226.8 mm / 122.68 cm / 48.2992 in / 4.0249 ft
Height Without Stand 711.2 mm / 71.12 cm / 28 in / 2.3333 ft
Depth Without Stand 55.88 mm / 5.588 cm / 2.2 in / 0.1833 ft
Weight Without Stand 13.29 kg / 29.3 lbs
Assembled TV Size & Mass 5
Specification Value
Dimensions With Stand
  • Width: 1226.8 mm (48.3 in)
  • Height: 759.46 mm (29.9 in)
  • Depth: 269.24 mm (10.6 in)
Width With Stand 1226.8 mm / 122.68 cm / 48.2992 in / 4.0249 ft
Height With Stand 759.46 mm / 75.946 cm / 29.9 in / 2.4917 ft
Depth With Stand 269.24 mm / 26.924 cm / 10.6 in / 0.8833 ft
Weight With Stand 14.51 kg / 31.99 lbs
Shipping Carton Measurements 5
Specification Value
Box Dimensions
  • Width: 1402 mm (55.2 in)
  • Height: 875 mm (34.45 in)
  • Depth: 155 mm (6.1 in)
Box Width 1402 mm / 140.2 cm / 55.1969 in / 4.5997 ft
Box Height 875 mm / 87.5 cm / 34.4488 in / 2.8707 ft
Box Depth 155 mm / 15.5 cm / 6.1024 in / 0.5085 ft
Box Weight 19.46 kg / 42.9 lbs
Exterior Styling & Stand Footprint 4
Specification Value
Stand Depth 269.24 mm / 26.924 cm / 10.6 in / 0.8833 ft
Chassis Color Black
Slim Design Flat-thin Design
Cable Management Yes
Wall Mounting & Installation 9
Specification Value
VESA Mount 300 x 300 mm
VESA Interface 300 x 300 mm
VESA Size 300 x 300 mm
Removable Stand Yes
Height Adjustment No
Swivel Adjustment No
Tilt Adjustment No
Pivot Adjustment No
Cable Management Yes
Electrical Load & Efficiency 7
Specification Value
Power Input 100 V - 120 V / 220 V - 240 V
110V Input Range 100 V - 120 V
220V Input Range 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Average Power Consumption 260 W
Standby Consumption 0.5 W
Annual Energy Consumption 325 kWh
Environmental Operating Limits 4
Specification Value
Operating Temperature 5 °C - 35 °C / 41 °F - 95 °F
Operating Humidity 20 % - 80 %
Storage Temperature -15 °C - 45 °C / 5 °F - 113 °F
Storage Humidity 10 % - 90 %
Picture Feature Inventory 2
Specification Value
Quantum Dot Color Yes
IMAX Enhanced Yes
Gaming Validation & Compatibility 4
Specification Value
AMD FreeSync Certification AMD FreeSync Premium Pro
Game Bar Yes
ALLM Auto Low Latency Mode (ALLM)
VRR Yes
Regulatory & Industry Approvals 4
Specification Value
CE Yes
TÜV Flicker-Free Yes
TÜV Low Blue Light Yes
IMAX Enhanced Yes
In-the-Box Components 4
Specification Value
Remote Control Yes
Remote Type Voice remote control
Remote Voice Control Yes
Screen Size 54.6 in
⚡

Estimated Running Cost

Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.

Daily—
Monthly—
Annually—

Draws more power than 82% of the 447 comparable displays we track.

Reviews

NO REVIEWS YET Own this display? Your rating helps calibrate the score for everyone.
DISPLAYINPUT · INDEPENDENT · SPEC-BASED · NO SPONSORED PLACEMENT SHEET № 55QM7K
