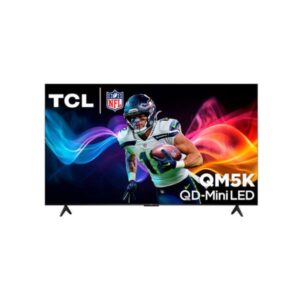

54.6″ TCL 55QM5K – Full Specifications
Everyday family viewing is the job of the TCL 55QM5K (54.6 in), a 55-class Google TV with an HVA panel.
tcl●TV
Display
54.6 in, HVA, Mini LED, 3840 x 2160 pixels
54.6
Refresh rate
48 Hz - 60 Hz
48 Hz
Dimensions
1229 x 714 x 56 mm
1229
Weight
12.16 kg
12.16 k
Processor
Overview
Everyday family viewing is the job of the TCL 55QM5K (54.6 in), a 55-class Google TV with an HVA panel. It shows 3840 × 2160 at 80 ppi over a 48-60 Hz range with VRR, and supports Dolby Vision, HDR10+ and HLG with 93 percent DCI-P3. Two 10 W speakers are fitted, along with three HDMI inputs and one USB port. Weight is 12.38 kg with the stand and 12.16 kg without it, and the VESA pattern is 300 × 300 mm.
- 54.6 in HVA, 3840 × 2160, 80 ppi
- 48-60 Hz range with VRR
- Dolby Vision, HDR10+, HLG
- 3 HDMI inputs, 1 × USB
- 12.38 kg with stand, 300 × 300 VESA
Pros & Cons
Pros
- 55QM5K lists VRR for smoother console play
- 55QM5K: Dolby Vision, HDR10+ and HLG together
- Panel weighs only 12.16 kg bare
- Standard 300 × 300 mm VESA bracket on 55QM5K
- Google TV supplies streaming apps and voice
Cons
- 55QM5K has only a single USB port
- Refresh range stops at 60 Hz
- 55QM5K speakers are rated at 2 × 10 W
- HDMI 2.1 is not specified for 55QM5K
Score & Ratings
7.4/10
Great
Television Identity & Market
5
| Specification | Value |
|---|---|
| Brand | TCL |
| Series | QM5K |
| Model | 55QM5K |
| Model Year | 2025 |
| Available Colors | Black |
Screen Geometry & Format
4
| Specification | Value |
|---|---|
| Screen Size | 54.6 in |
| Marketed Screen Size | 54.6 in |
| Aspect Ratio | 16:9 |
| Screen-to-Body Ratio | 93.79 % |
54.6" Display Size (138.7 cm) 16:9
Resolution at a Glance
Panel Architecture & Light Control
3
| Specification | Value |
|---|---|
| Panel Type | HVA |
| Panel Bit Depth | 10 bits (8 bits + FRC) |
| Display Colors | 1.07 billion colors / 30-bit |
Resolution, Scaling & Signal
4
| Specification | Value |
|---|---|
| Native Resolution | 3840 x 2160 pixelsUltra HD (UHD) / 4K / 2160p |
| Pixel Density | 80 ppi |
| Pixel Pitch | 0.315 mm |
| HDCP Support | Yes |
◑
Luminance, Blacks & Contrast
3
| Specification | Value |
|---|---|
| Static Contrast | 6000 : 1 |
| Static Contrast Ratio | 6000 : 1 |
| Viewing Angles | 178 ° / 178 ° |
Color Reproduction & Calibration
1
| Specification | Value |
|---|---|
| DCI-P3 Coverage | 93 % |
RECOMMENDED VIEWING DISTANCE
55"
Viewing Distance = 1.5–2.5 × Screen Size
25° field of view — Comfortable, relaxed viewing.
HDR Formats & Tone Mapping
2
| Specification | Value |
|---|---|
| HDR Support |
|
| Filmmaker Mode | Yes |
Motion Processing & Response
2
| Specification | Value |
|---|---|
| Maximum Refresh Rate | 48 Hz - 60 Hz |
| Motion Processing | AI MotionMEMC (Motion Estimation Motion Compensation) |
Console, VRR & Game Tools
3
| Specification | Value |
|---|---|
| Variable Refresh Rate | Variable Refresh Rate (VRR) |
| Auto Low Latency Mode | Auto Low Latency Mode (ALLM) |
| Game Bar | Game Master 2.0 with Game Bar |
Picture Intelligence & AI
1
| Specification | Value |
|---|---|
| Filmmaker Mode | Yes |
Broadcast Tuners & Reception
5
| Specification | Value |
|---|---|
| Built-In TV Tuner |
|
| Tuner Configuration |
|
| Analog Tuner | NTSC / PAL / SECAM |
| North American Digital Tuner | ATSC |
| Clear QAM | clear qam |
Compute, Memory & Storage
1
| Specification | Value |
|---|---|
| Processor Brand Name | AIPQ |
Smart Platform & System
2
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating System | Google TV |
Streaming & Entertainment
4
| Specification | Value |
|---|---|
| Netflix | Yes |
| Prime Video | Yes |
| Disney+ | Yes |
| Apple TV+ | Yes |
Voice Assistants & Search
1
| Specification | Value |
|---|---|
| Google Assistant | Yes |
HDMI Signal Interface
8
| Specification | Value |
|---|---|
| Total HDMI Ports |
|
| HDMI 2.0 Ports |
|
| HDMI CEC | Yes |
| Audio Return Channel | Yes |
| Enhanced Audio Return Channel | Yes |
| Auto Low Latency Mode | Auto Low Latency Mode (ALLM) |
| Variable Refresh Rate | Variable Refresh Rate (VRR) |
| HDCP Support | Yes |
Ports & Connections
USB, Audio & Legacy I/O
4
| Specification | Value |
|---|---|
| Total USB Ports |
|
| USB-A 3.0 Ports |
|
| Ethernet Port | 1× RJ45 |
| Optical Audio Output | 1× S/PDIF |
Wireless, LAN & Casting
9
| Specification | Value |
|---|---|
| LAN | Yes |
| Wi-Fi | Wi-Fi 8 |
| Wi-Fi Standards | 802.11a |
| Bluetooth | Yes |
| Wi-Fi Direct | Yes |
| DLNA | Yes |
| Apple AirPlay | Yes |
| Apple HomeKit | Yes |
| Chromecast | Yes |
Speaker Layout & Output
2
| Specification | Value |
|---|---|
| Built-In Speakers | 2 x 10 W (watts) |
| Built-In Subwoofer | 1 x 20 W (watts) |
Camera & Video Calling
1
| Specification | Value |
|---|---|
| Built-In Camera | No |
Connected Home & IoT
1
| Specification | Value |
|---|---|
| Apple HomeKit | Yes |
Panel-Only Size & Mass
4
| Specification | Value |
|---|---|
| Width Without Stand | 1229 mm |
| Height Without Stand | 714 mm |
| Depth Without Stand | 56 mm |
| Weight Without Stand | 12.16 kg |
Assembled TV Size & Mass
4
| Specification | Value |
|---|---|
| Width With Stand | 1229 mm |
| Height With Stand | 765 mm |
| Depth With Stand | 279.4 mm |
| Weight With Stand | 12.38 kg |
Shipping Carton Measurements
5
| Specification | Value |
|---|---|
| Box Dimensions |
|
| Box Width | 1402 mm (millimeters) |
| Box Height | 876.3 mm (millimeters) |
| Box Depth | 127 mm (millimeters) |
| Box Weight | 17.6 kg (kilograms) / 38.8 lbs (pounds) |
Exterior Styling & Stand Footprint
1
| Specification | Value |
|---|---|
| Chassis Color | Black |
Wall Mounting & Installation
8
| Specification | Value |
|---|---|
| VESA Mount | 300 x 300 mm |
| VESA Interface | 300 x 300 mm |
| VESA Size | 300 x 300 mm |
| Removable Stand | Yes |
| Height Adjustment | NoLandscape / portrait pivot: NoLeft / right swivel: NoForward / backward tilt: No |
| Swivel Adjustment | No |
| Tilt Adjustment | No |
| Pivot Adjustment | No |
Electrical Load & Efficiency
3
| Specification | Value |
|---|---|
| Power Input | 100 V - 120 V / 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Standby Consumption | 0.5 W |
Environmental Operating Limits
4
| Specification | Value |
|---|---|
| Operating Temperature | 5 °C - 35 °C (degrees Celsius) / 41 °F - 95 °F (degrees Fahrenheit) |
| Operating Humidity | 20 % - 80 % (percent) |
| Storage Temperature | -15 °C - 45 °C (degrees Celsius) / 5 °F - 113 °F (degrees Fahrenheit) |
| Storage Humidity | 10 % - 90 % (percent) |
Picture Feature Inventory
1
| Specification | Value |
|---|---|
| Filmmaker Mode | Yes |
Gaming Validation & Compatibility
2
| Specification | Value |
|---|---|
| Game Bar | Game Master 2.0 with Game Bar |
| ALLM | Auto Low Latency Mode (ALLM) |
Regulatory & Industry Approvals
1
| Specification | Value |
|---|---|
| CE | Yes |
In-the-Box Components
1
| Specification | Value |
|---|---|
| Screen Size | 54.6 in |
⚡
Estimated Running Cost
Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.
Daily—
Monthly—
Annually—
Draws more power than 82% of the 447 comparable displays we track.
