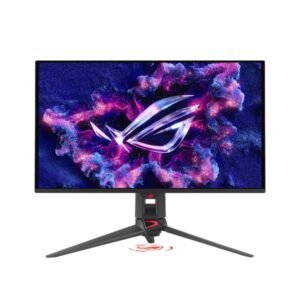

26.5″ Asus ROG Swift OLED PG27UCWM – Full Specifications
Creators who also game will appreciate the Asus ROG Swift OLED PG27UCWM, a 26.5-inch 4K WOLED monitor with a glossy TrueBlack finish.
Overview
Creators who also game will appreciate the Asus ROG Swift OLED PG27UCWM, a 26.5-inch 4K WOLED monitor with a glossy TrueBlack finish. At 165 ppi and 240 Hz, with 0.03 ms response and support for HDR10 and Dolby Vision, it handles both editing and fast play. DisplayPort 2.1 carries the signal, while a 90 W USB-C port, three USB-A ports and a KVM switch make it a working hub. The monitor weighs 8.1 kg with the stand. Text stays sharp at this size, which helps during long editing sessions.
- 3840 × 2160 WOLED, 26.5-inch, 165 ppi
- 240 Hz refresh, response time 0.03 ms
- 250 nits, 1000 peak, HDR 400
- USB-C 90 W, DisplayPort 2.1, 2× HDMI 2.1
- KVM, 3 USB-A, 8.1 kg with stand
Pros & Cons
- Dolby Vision and HDR10 are both supported
- 90 W USB-C powers most thin laptops
- TrueBlack finish makes the contrast really pop
- KVM switch shares peripherals between two PCs
- Sharp 165 ppi helps detailed creative work
- Glossy coating shows reflections near open windows
- Bring headphones, since there is no audio hardware
- 8.1 kg is hefty for a 26.5-inch screen
- Typical 250 nits favours dimmer spaces best
Score & Ratings
| Specification | Value |
|---|---|
| Brand | ASUS |
| Series | ROG Swift |
| Model | ROG Swift OLED PG27UCWM |
| Model Alias | ROG Swift OLED PG27UCWM |
| Full Product Name | ASUS ROG Swift OLED PG27UCWM |
| Model Year | 2026 |
| Monitor Type | Gaming Monitor |
| Market Position | Premium / Flagship Gaming |
| Primary Use | Competitive Esports & High-End Immersive Gaming |
| Available Colors | Black |
| Warranty | 3 years (36 months) standard limited warranty from date of purchase |
| Panel Warranty | 3 years |
| Burn-In Warranty | 3 years (36 months) OLED panel burn-in coverage on most models |
| Specification | Value |
|---|---|
| Screen Size | 26.5 in |
| Exact Diagonal | 673.2 mm (26.50 in) |
| Aspect Ratio | 16:9 |
| Active Display Width | 589.97 mm (23.23 in) |
| Active Display Height | 332.93 mm (13.11 in) |
| Display Area | 87.84 % |
| Panel Type | WOLED |
| Panel Technology | OLED |
| Panel Manufacturer | Samsung |
| OLED Technology | QD-OLED |
| Backlight Type | Self-emissive |
| Self-Emissive Display | Yes |
| Quantum Dot | Yes |
| 3D Support | No |
| Screen Coating | Glossy / TrueBlack Glossy |
26.5" Display Size (67.3 cm) 16:9
| Specification | Value |
|---|---|
| Native Resolution | 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p |
| Pixel Density | 165 ppi / 65 ppcm |
| Pixel Pitch | 0.155 mm (0.01 in) |
Resolution at a Glance
| Specification | Value |
|---|---|
| Panel Bit Depth | 10 bits |
| FRC | No |
| Display Colors | 1073741824 colors / 30 bits |
| Typical Brightness | 250 cd/m² |
| Peak Brightness | 1000 cd/m² |
| Static Contrast Ratio | 1500000 : 1 |
| Horizontal Viewing Angle | 178 ° |
| Vertical Viewing Angle | 178 ° |
| HDR Support |
|
| HDR10 | Yes |
| Dolby Vision | Yes |
| sRGB Coverage | 130 % |
| DCI-P3 Coverage | 99% |
| Gamma Adjustment | Yes |
Fills central vision comfortably at a typical desk distance — no head movement needed.
| Specification | Value |
|---|---|
| Native Refresh Rate | 240 Hz |
| Refresh Rate Range | 48 Hz - 240 Hz |
| Minimum Response Time | 0.03 ms |
| AMD FreeSync | Premium Pro |
| NVIDIA G-Sync | Compatible |
| Motion Blur Reduction | ELMB |
| Shadow Boost | Yes |
| Crosshair | Yes |
| Dynamic Crosshair | Yes |
| AI Gaming Features |
|
| GameFast Input | Yes |
| GameVisual | Yes |
| Picture-by-Picture | Yes |
| Picture-in-Picture | Yes |
| Specification | Value |
|---|---|
| HDMI Ports |
|
| HDMI Version | 2.1 |
| HDMI Bandwidth | 106 kHz - 583 kHz |
| HDMI FRL | Yes |
| DisplayPort Input | 1 |
| DisplayPort Version | 2.1 |
| DisplayPort Bandwidth | UHBR20 |
| USB-C Video Input | Yes |
| DisplayPort Alt Mode | Yes |
| HDCP Support | Yes |
| HDCP Version | HDCP 2.2 |
| USB-C Data Speed | 5 Gbps (USB 3.2 Gen 1) |
| USB-C Power Delivery | 90W |
| USB-A Ports |
|
| KVM Switch | Yes |
| Audio Output | 3.5 mm |
| Headphone Output | 3.5 mm Audio Out |
Ports & Connections
| Specification | Value |
|---|---|
| Built-In Camera | No |
| Specification | Value |
|---|---|
| VESA Mount | 100 x 100 mm |
| VESA Size | 100 x 100 mm |
| Removable Stand | Yes |
| Height Adjustment | 110 mm |
| Height Adjustment Range | 110 mm (4.33 in) |
| Tilt Adjustment | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 20 ° / 1 / 4" Tripod Socket |
| Swivel Adjustment | Yes |
| Left Swivel | 30 ° |
| Right Swivel | 30 ° |
| Left Pivot | 90 ° |
| Right Pivot | 90 ° |
| Portrait Mode | Yes |
| Security Lock | Yes |
| Anti-Theft Lock | Kensington Lock |
| Specification | Value |
|---|---|
| Dimensions With Stand | 606 mm x 438 mm x 256 mm (W x H x D) |
| Dimensions Without Stand | 606 mm x 369 mm x 63 mm (W x H x D) |
| Weight With Stand | 8.1 kg (17.86 lbs) |
| Weight Without Stand | 5.4 kg (11.9 lbs) |
| Stand Depth | 256 mm (10.08 in) |
| RGB Lighting | Yes |
Power & Operating Conditions 13
| Specification | Value |
|---|---|
| Power Input | 100 V - 120 V / 220 V - 240 V |
| 110V Input Range | 100 V - 120 V |
| 220V Input Range | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Average Power Consumption | 50 W |
| Sleep Consumption | 0.5 W |
| Off Consumption | 0.3 W |
| Operating Temperature | 0 °C - 40 °C / 32 °F - 104 °F |
| Operating Humidity | 20 % - 80 % |
| Operating Altitude | 3658 m / 12001.3 ft |
| Storage Temperature | -20 °C - 60 °C / -4 °F - 140 °F |
| Storage Humidity | 10 % - 90 % |
| Storage Altitude | 12192 m / 40000 ft |
| Specification | Value |
|---|---|
| Flicker-Free | Yes |
| Low Blue Light | Yes |
| Proximity Sensor | Yes |
| OLED Protection | Yes |
| OLED Care | Yes |
| Burn-In Protection | Yes (ASUS OLED Care / OLED Care Pro) |
| Thermal Management | Yes |
| Custom Heatsink | Yes |
| Desktop Control Software | Yes |
| Monitor Management Software | Yes |
| Screen Split | Yes |
| Aura Sync | Yes |
| Multiple HDR Modes | Yes |
| Anti-Theft Slot | Yes (Kensington lock slot) |
| Additional Monitor Features |
|
Certifications, Standards & Licenses 4
| Specification | Value |
|---|---|
| TÜV Flicker-Free | Yes |
| TÜV Low Blue Light | Yes |
| VESA DisplayHDR | Display / HDR 400 True Black |
| VESA AdaptiveSync | Display 240Hz |
| Specification | Value |
|---|---|
| HDMI Cable | HDMI 2.1 cable |
| DisplayPort Cable | DisplayPort 2.1 (DP80) cable |
| USB-C Cable | USB Type-C cable |
| USB Upstream Cable | USB 3.2 cable |
Packaging Information 2
| Specification | Value |
|---|---|
| Package Dimensions | 860 mm x 490 mm x 163 mm (W x H x D) |
| Package Weight | 11.8 kg (26.01 lbs) |
Estimated Running Cost
Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.
Draws more power than 54% of the 716 comparable displays we track.
