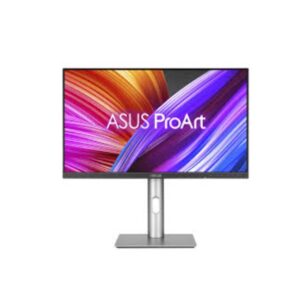

23.8″ Asus PA24ACRV – Specs & Features
The Asus PA24ACRV is a 23.8-inch IPS display that doubles as a laptop dock, thanks to 96 W USB-C power delivery.
Overview
The Asus PA24ACRV is a 23.8-inch IPS display that doubles as a laptop dock, thanks to 96 W USB-C power delivery. It offers QHD resolution, 123 ppi pixel density, 350 nits typical brightness (400 nits peak), 1000:1 static contrast and 100% sRGB and 95% DCI-P3 coverage. The panel refreshes at 48–75 Hz, quotes 5 ms response and supports Adaptive-Sync. Inputs include 1× HDMI 2.0, 1× DisplayPort 1.4, USB-C 96 W and 3× USB-A. The stand offers 130 mm of height adjustment, swivel and pivot. 2 × 2 W speakers are built in, and it weighs 5.6 kg with the stand. It suits laptop users who want one-cable docking at the desk. The main trade-off: 75 Hz limits smoothness in fast action.
- 23.8-inch IPS, 2560 × 1440 at 123 ppi
- 48–75 Hz, 5 ms response, Adaptive-Sync
- 350 nits (400 peak), 1000:1 contrast, 100% sRGB, 95% DCI-P3, DisplayHDR 400
- 1× HDMI 2.0, 1× DisplayPort 1.4, USB-C 96 W, 3× USB-A
- 130 mm height, swivel, pivot, 2 × 2 W speakers, 5.6 kg
Pros & Cons
- USB-C with 96 W power delivery charges a laptop over a single cable
- Stand offers 130 mm height, swivel and pivot adjustment
- 95% DCI-P3 coverage suits colour-sensitive work
- QHD at 123 ppi gives crisp text and detail
- Adaptive-Sync support reduces tearing
- 75 Hz limits smoothness in fast action
- 1000:1 contrast makes blacks look grey in dark rooms
- HDR is supported, but low brightness limits the effect
- Few video inputs limit multi-device desks
Score & Ratings
| Specification | Value |
|---|---|
| Brand | ASUS |
| Series | ProArt |
| Model | PA24ACRV |
| Full Product Name | ASUS ProArt PA24ACRV |
| Model Year | 2024 |
| Monitor Type | Professional / Creator Monitor |
| Market Position | Professional / Creator |
| Primary Use | Content Creation, Design & Color-Critical Work |
| Launch Status | 2024 |
| Available Colors | Black |
| Warranty | 3 years (36 months) standard limited warranty from date of purchase |
| Burn-In Warranty | Not applicable (non-OLED panel) |
| Specification | Value |
|---|---|
| Screen Size | 23.8 in |
| Exact Diagonal | 604.698 mm (23.81 in) |
| Aspect Ratio | 1.778:1 |
| Active Display Width | 526.848 mm (20.74 in) |
| Active Display Height | 296.35 mm (11.67 in) |
| Display Area | 89.8 % (percent) |
| Panel Type | IPS |
| Backlight Type | W-LED |
| 3D Support | No |
| Screen Coating | Anti-glare / Matte |
23.8" Display Size (60.5 cm) 16:9
| Specification | Value |
|---|---|
| Native Resolution | 2560 x 1440 pixels / Quad HD (QHD) / 1440p |
| Pixel Density | 123 ppi / 48 ppcm |
| Pixel Pitch | 0.206 mm (millimeters) |
Resolution at a Glance
| Specification | Value |
|---|---|
| Panel Bit Depth | 8 bits |
| FRC | No |
| Display Colors | 16777216 colors / 24 bits |
| Typical Brightness | 350 cd/m² |
| Peak Brightness | 400 cd/m² |
| Static Contrast Ratio | 1000 : 1 |
| Horizontal Viewing Angle | 178 ° |
| Vertical Viewing Angle | 178 ° |
| HDR Support |
|
| HDR10 | Yes |
| sRGB Coverage | 100% |
| DCI-P3 Coverage | 95% |
| Color Accuracy | Yes |
| Gamma Adjustment | Yes |
Fills central vision comfortably at a typical desk distance — no head movement needed.
| Specification | Value |
|---|---|
| Native Refresh Rate | 75 Hz |
| Refresh Rate Range | 48 Hz - 75 Hz |
| Minimum Response Time | 5 ms |
| Adaptive-Sync | VESA MediaSync Display |
| Picture-by-Picture | Yes |
| Picture-in-Picture | Yes |
| Specification | Value |
|---|---|
| HDMI Ports |
|
| HDMI Version | 2.0 |
| HDMI Bandwidth | 15 kHz - 135 kHz |
| DisplayPort Input | 1 |
| DisplayPort Output | 1× DisplayPort |
| DisplayPort Version | 1.4 |
| USB-C Video Input | Yes |
| DisplayPort Alt Mode | Yes |
| HDCP Support | Yes |
| USB-C Power Delivery | 96 W |
| USB-A Ports |
|
| Audio Output | 3.5 mm |
| Headphone Output | 3.5 mm Audio Out |
Ports & Connections
| Specification | Value |
|---|---|
| Built-In Speakers | 2 x 2 W |
| Built-In Camera | No |
| Specification | Value |
|---|---|
| VESA Mount | 100 x 100 mm |
| VESA Size | 100 x 100 mm |
| Removable Stand | Yes |
| Height Adjustment | 130 mm |
| Height Adjustment Range | 130 mm (5.12 in) |
| Tilt Adjustment | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 23 ° / Cable management |
| Swivel Adjustment | Yes |
| Left Swivel | 30 ° |
| Right Swivel | 30 ° |
| Left Pivot | 90 ° |
| Right Pivot | 90 ° |
| Portrait Mode | Yes |
| Security Lock | Yes |
| Anti-Theft Lock | Kensington Lock |
| Specification | Value |
|---|---|
| Dimensions With Stand | 539.6 mm x 374.9 mm x 197.2 mm (W x H x D) |
| Dimensions Without Stand | 539.6 mm x 322.2 mm x 44.6 mm (W x H x D) |
| Weight With Stand | 5.6 kg (12.35 lbs) |
| Weight Without Stand | 3.9 kg (8.6 lbs) |
| Stand Depth | 197.2 mm (7.76 in) |
Power & Operating Conditions 7
| Specification | Value |
|---|---|
| Power Input | 100–240V |
| 110V Input Range | 100 V - 120 V |
| 220V Input Range | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Average Power Consumption | 15 W |
| Sleep Consumption | 0.5 W |
| Off Consumption | 0.3 W |
| Specification | Value |
|---|---|
| Flicker-Free | Yes |
| Low Blue Light | Yes |
| Ambient Light Sensor | Yes |
| Desktop Control Software | Yes |
| Monitor Management Software | Yes |
| Screen Split | Yes |
| Anti-Theft Slot | Yes (Kensington lock slot) |
| Additional Monitor Features |
|
Certifications, Standards & Licenses 7
| Specification | Value |
|---|---|
| Energy Star | Yes |
| EPEAT | Yes |
| TCO Certified | Yes |
| TÜV Flicker-Free | Yes |
| TÜV Low Blue Light | Yes |
| VESA DisplayHDR | Display / HDR 400 |
| CE | Yes |
| Specification | Value |
|---|---|
| HDMI Cable | HDMI cable (optional) |
| DisplayPort Cable | DisplayPort cable (optional) |
| USB-C Cable | USB Type-C cable (optional) |
Packaging Information 2
| Specification | Value |
|---|---|
| Package Dimensions | 620 mm x 390 mm x 127 mm (W x H x D) |
| Package Weight | 8.1 kg (17.86 lbs) |
Estimated Running Cost
Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.
Draws more power than 55% of the 701 comparable displays we track.
