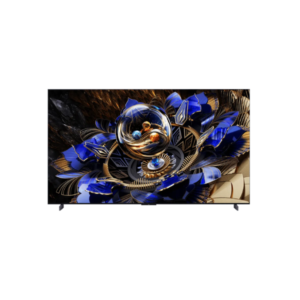

97.5″ TCL 98X11K – Full Specifications
The TCL 98X11K is a 97.5 in 3840 x 2160 (4K) Mini LED TV built around a HVA panel and Google TV.
tcl●TV
Display
97.5 in, HVA, Mini LED, 3840 x 2160 (4K)
97.5
Refresh rate
48 Hz - 144 Hz
48 Hz
Dimensions
2177 mm x 1290 mm x 82.2 mm
2177
Weight
68.8 kg
68.8 k
Processor
AIPQ Pro with AI
Overview
The TCL 98X11K is a 97.5 in 3840 x 2160 (4K) Mini LED TV built around a HVA panel and Google TV. Its picture specifications stand out for 6500 cd/m² peak brightness, 7000 : 1 static contrast, 97 % DCI-P3, while HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ covers the HDR formats listed for this model. For gaming, the specification sheet lists 48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro, making the set better suited to high-frame-rate console or PC use than a basic 60 Hz television. TCL lists AIPQ Pro with AI for picture processing, with Google TV handling apps and connected-TV features. Connectivity includes 4 HDMI ports, 2 HDMI 2.1, 3 USB ports, plus Wi-Fi, Ethernet and Bluetooth where listed in the source data. Audio is also more ambitious than a basic TV setup, with Bang & Olufsen tuning/features included in the supplied specification. For installation, it uses 600 x 400 mm VESA mounting pattern and weighs 70.3 kg / 154.
BrandTCLPanel TypeHVAResolution3840 x 2160 (4K)Refresh Rate48 Hz - 144 Hz
Key Highlights
- Mini LED backlighting is the core display technology listed for the 98X11K
- 6500 cd/m² peak brightness gives the specification sheet a clear HDR brightness target
- 97 % DCI-P3 coverage supports wide-color HDR movies and games
- 48 Hz - 144 Hz with VRR/ALLM support targets high-frame-rate gaming
- Google TV provides the smart-TV app and casting platform
Who Should Buy the tcl 98X11K
+ Best For
Console and PC gamers
48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro supports smoother high-frame-rate play
Movie and streaming viewers
3840 x 2160 (4K) resolution and HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ cover modern video sources
HDR-focused buyers
the listed 6500 cd/m² peak brightness is unusually strong on paper
Large-screen buyers
the 97.5 in panel suits a room that can accommodate its physical dimensions
× Not Ideal For
Easy one-person installation
the TV weighs 70.3 kg / 154.98 lbs with the stand and needs careful handling
Buyers who require published measured input lag
no exact input-lag figure is provided for this model
Multi-console HDMI 2.1 setups
only 2 HDMI 2.1 ports are explicitly listed
Display Performance
Refresh Rate
48 Hz - 144 Hz
High-refresh support suits modern gaming
HDR
HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ
Format support defines compatibility; brightness and local dimming determine the visible result
Gaming Performance
Refresh Rate48 Hz - 144 HzUseful for high-frame-rate consoles and PCs
VRR / Adaptive SyncVRRHelps reduce tearing as frame rate changes
HDR & Brightness Reality
The TCL 98X11K accepts HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ. Its published peak brightness is 6500 cd/m². Static contrast is listed at 7000 : 1. These published specifications are useful indicators, but they do not replace measured HDR brightness, blooming and tone-mapping tests for this exact unit.
Connectivity & Ports
HDMI4 total; 2 HDMI 2.1; 2 HDMI 2.0Use HDMI 2.1 inputs for the highest listed gaming bandwidth
Audio OutOpticalExternal sound systems can use the listed audio outputs
Real-World Use Cases
Google TV provides the smart-TV platform
HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ covers the HDR formats explicitly listed
48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro defines the supported high-frame-rate/game feature set
600 x 400 mm and 70.3 kg / 154.98 lbs determine bracket requirements
Pros & Cons
Pros
- High published peak brightness of 6500 cd/m² strengthens HDR capability on paper
- 97 % DCI-P3 coverage supports wide-color HDR content
- 48 Hz 144 Hz refresh range with VRR/ALLM supports high-frame-rate gaming
- AMD FreeSync Premium Pro adds adaptive-sync support for compatible gaming hardware
- 2 HDMI 2.1 ports support modern console/PC connectivity
Cons
- No measured input-lag figure is published in the supplied specification
- Only 2 HDMI 2.1 ports are explicitly listed for high-bandwidth gaming devices
- Very high assembled weight (70.3 kg / 154.98 lbs) makes installation more demanding
Score & Ratings
8.6/10
Great
Television Identity & Market
6
| Specification | Value |
|---|---|
| Brand | TCL |
| Series | X11K |
| Model | 98X11K |
| Full Product Name | TCL 98X11K |
| Model Year | 2025 |
| Available Colors | Black |
Screen Geometry & Format
8
| Specification | Value | What It Means |
|---|---|---|
| Screen Size | 97.5 in | 97.5 in determines viewing distance and furniture requirements. |
| Marketed Screen Size | 97.5 in | |
| Exact Diagonal | 2477 mm / 247.7 cm / 97.5197 in / 8.1266 ft | |
| Aspect Ratio | 1.778:1 / 16:9 | |
| Active Display Width | 2158.89 mm / 215.889 cm / 84.9958 in / 7.083 ft | |
| Active Display Height | 1214.38 mm / 121.438 cm / 47.8101 in / 3.9842 ft | |
| Screen-to-Body Ratio | 93.35 % | |
| 3D Support | No |
Panel Architecture & Light Control
6
| Specification | Value | What It Means |
|---|---|---|
| Panel Manufacturer | CSOT | |
| Panel Type | HVA | HVA describes the LCD panel family used by this model. |
| Quantum Dot | Yes | |
| Backlight Type | Mini LED | |
| Panel Bit Depth | 10 bits | |
| Display Colors | 1073741824 colors / 30 bits |
Surface Treatment & Viewing Layer
1
| Specification | Value |
|---|---|
| Screen Coating | Anti-glare/Matte / Precise Dimming Series / Local dimming zones - 14112 / CrystGlow HVA Panel / All-domain Halo Control Technology (Powerful Light-emitting Chip / Super Condensed Micro Lens / Super Micro-OD / Dynamic Lighting Bionic Algorithm / Transient Response / Bidirectional 16-bit) / Bionic Color Optimization Technology / Colorful Quantum Crystal / Low Reflection Film |
Resolution, Scaling & Signal
4
| Specification | Value |
|---|---|
| Native Resolution | 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p |
| Pixel Density | 45 ppi / 17 ppcm |
| Pixel Pitch | 0.562 mm / 0.0562 cm / 0.0221 in / 0.0018 ft |
| Native 4K Support | Yes |
◑
Luminance, Blacks & Contrast
7
| Specification | Value | What It Means |
|---|---|---|
| Peak Brightness | 6500 cd/m² | 6500 cd/m² is the listed maximum light-output figure. |
| Static Contrast | 7000 : 1 | 7000 : 1 is the supplied native contrast figure. |
| Static Contrast Ratio | 7000 : 1 | |
| Dynamic Contrast | 65000000 : 1 | |
| Dynamic Contrast Ratio | 65000000 : 1 | |
| Horizontal Viewing Angle | 178 ° | |
| Vertical Viewing Angle | 178 ° |
Color Reproduction & Calibration
3
| Specification | Value |
|---|---|
| DCI-P3 Coverage | 97 % |
| Wide Color Gamut | Yes |
| Quantum Dot Color | Yes |
HDR Formats & Tone Mapping
9
| Specification | Value | What It Means |
|---|---|---|
| HDR Support | Dolby Vision IQDolby VisionHDR10+ GamingHDR10+HDR10HLG |
HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ means these signal formats are accepted by the television. |
| HDR Formats | Dolby Vision IQDolby VisionHDR10+ GamingHDR10+HDR10HLG |
|
| HDR10 | Yes | |
| HDR10+ | Yes | |
| HDR10+ Gaming | Yes | |
| Dolby Vision | Yes | |
| Dolby Vision IQ | Yes | |
| HLG | Yes | |
| IMAX Enhanced | Yes |
Motion Processing & Response
4
| Specification | Value |
|---|---|
| Maximum Refresh Rate | 144 Hz |
| Refresh Rate Range | 48 Hz - 144 Hz |
| Vertical Frequency | 48 Hz - 144 Hz |
| Motion Processing | Ai-MEMC / MEMC (Motion Estimation Motion Compensation) |
Console, VRR & Game Tools
6
| Specification | Value |
|---|---|
| Variable Refresh Rate | Yes |
| Auto Low Latency Mode | Yes |
| High Frame Rate | Yes |
| AMD FreeSync | AMD FreeSync Premium Pro |
| Game Bar | Yes |
| Game Master | Game Master 2.0 with Game Bar |
Picture Intelligence & AI
8
| Specification | Value |
|---|---|
| Picture Processor | AIPQ Pro with AI |
| AI Processor | AIPQ Pro with AI |
| AI Upscaling | Yes |
| AI Contrast | Yes |
| AI Color | Yes |
| AI Clarity | Yes |
| AI HDR Enhancement | Yes |
| AI Scene Detection | Yes |
Broadcast Tuners & Reception
10
| Specification | Value |
|---|---|
| Built-In TV Tuner | Yes |
| Tuner Configuration | Analog (NTSC/PAL/SECAM) / DVB-T / DVB-T2 / DVB-C / DVB-S / DVB-S2 |
| Analog Tuner | Yes |
| Digital Terrestrial Tuner | DVB-T |
| Digital Terrestrial Tuner 2 | DVB-T2 |
| Digital Cable Tuner | DVB-C |
| Digital Satellite Tuner | DVB-S |
| Digital Satellite Tuner 2 | DVB-S2 |
| Satellite Input | Yes |
| Cable/Antenna Input | Yes |
Compute, Memory & Storage
9
| Specification | Value |
|---|---|
| Processor Brand Name | AIPQ Pro with AI |
| System on Chip | MediaTek Pentonic 700 (MT9653) |
| Picture Processor | AIPQ Pro with AI |
| CPU Architecture | 2x ARM Cortex-A73, 2x ARM Cortex-A73 |
| CPU Cores | 4 |
| CPU Frequency | 1390 MHz |
| GPU | ARM Mali-G52 |
| GPU Cores | 1 |
| RAM Capacity | 3 GB |
Smart Platform & System
2
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Operating System | Google TV |
Streaming & Entertainment
1
| Specification | Value |
|---|---|
| Art Gallery | Yes |
Voice Assistants & Search
4
| Specification | Value |
|---|---|
| Voice Control | Yes |
| Far-Field Voice Control | Yes |
| Amazon Alexa | Yes |
| Google Assistant | Yes |
HDMI Signal Interface
10
| Specification | Value |
|---|---|
| Total HDMI Ports | 4 |
| HDMI 2.1 Ports | 2× HDMI 2.1 |
| HDMI 2.0 Ports | 2× HDMI 2.0 |
| HDMI CEC | Yes |
| Enhanced Audio Return Channel | Yes |
| Auto Low Latency Mode | Yes |
| High Frame Rate | Yes |
| Variable Refresh Rate | Yes |
| HDCP Support | Yes |
| HDCP Version | 2.3 |
USB, Audio & Legacy I/O
7
| Specification | Value |
|---|---|
| Total USB Ports | 3 |
| USB-A 2.0 Ports | 2× USB 2.0 |
| USB-A 3.0 Ports | 1× USB 3.0 |
| Ethernet Port | 1× RJ45 |
| Optical Audio Output | 1× S/PDIF |
| Satellite Input | Yes |
| Antenna Input | Yes |
Wireless, LAN & Casting
7
| Specification | Value |
|---|---|
| LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a / 802.11b / 802.11g / 802.11n 5GHz / 802.11n / 802.11ac / 802.11ax |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi Direct | Yes |
| DLNA | Yes |
| Apple AirPlay | Yes |
Speaker Layout & Output
3
| Specification | Value |
|---|---|
| Built-In Speakers | 120 W / Audio by Bang & Olufsen / Beosonic / Dolby Atmos / Dolby Digital+ |
| Total Audio Output | 120 W |
| Audio Brand | Bang & Olufsen |
Sound Formats & Enhancement
2
| Specification | Value |
|---|---|
| Dolby Atmos | Yes |
| Dolby Digital Plus | Yes |
Camera & Video Calling
1
| Specification | Value |
|---|---|
| Built-In Camera | No |
Photo File Compatibility
4
| Specification | Value |
|---|---|
| Image File Formats | JPEG / GIF / PNG |
| JPEG | Yes |
| PNG | Yes |
| GIF | Yes |
Music Codec Compatibility
8
| Specification | Value |
|---|---|
| Audio Formats | 3GPP (3rd Generation Partnership Project, .3gp) / AAC (Advanced Audio Coding) / AAC+ / aacPlus / HE-AAC v1 / FLAC (Free Lossless Audio Codec, .flac) / M4A (MPEG-4 Audio, .m4a) / MP3 (MPEG-2 Audio Layer II, .mp3) / WMA (Windows Media Audio, .wma) / WAV (Waveform Audio File Format, .wav, .wave) |
| AAC | Yes |
| HE-AAC | Yes |
| FLAC | Yes |
| MP3 | Yes |
| M4A | Yes |
| WMA | Yes |
| WAV | Yes |
Video Container Compatibility
7
| Specification | Value |
|---|---|
| Video Containers | 3GPP (3rd Generation Partnership Project, .3gp) / AVI (Audio Video Interleaved, .avi) / DivX (.avi, .divx, .mkv) / H.263 / H.264 / MPEG-4 Part 10 / AVC video / H.265 / MPEG-H Part 2 / HEVC / MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks) / MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v) / MPEG-4 / VP9 / WMV (Windows Media Video, .wmv) / Xvid |
| 3GPP | Yes |
| AVI | Yes |
| DivX | Yes |
| MKV | Yes |
| MP4 | Yes |
| WMV | Yes |
Video Codec Compatibility
7
| Specification | Value |
|---|---|
| Video Codecs | 3GPP (3rd Generation Partnership Project, .3gp) / AVI (Audio Video Interleaved, .avi) / DivX (.avi, .divx, .mkv) / H.263 / H.264 / MPEG-4 Part 10 / AVC video / H.265 / MPEG-H Part 2 / HEVC / MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks) / MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v) / MPEG-4 / VP9 / WMV (Windows Media Video, .wmv) / Xvid |
| H.263 | Yes |
| H.264 / AVC | Yes |
| H.265 / HEVC | Yes |
| MPEG-4 | Yes |
| VP9 | Yes |
| Xvid | Yes |
Panel-Only Size & Mass
5
| Specification | Value |
|---|---|
| Dimensions Without Stand | 2177 mm / 217.7 cm / 85.7087 in / 7.1424 ft x 1290 mm / 129 cm / 50.7874 in / 4.2323 ft x 82.2 mm / 8.22 cm / 3.2362 in / 0.2697 ft (W x H x D) |
| Width Without Stand | 2177 mm / 217.7 cm / 85.7087 in / 7.1424 ft |
| Height Without Stand | 1290 mm / 129 cm / 50.7874 in / 4.2323 ft |
| Depth Without Stand | 82.2 mm / 8.22 cm / 3.2362 in / 0.2697 ft |
| Weight Without Stand | 68.8 kg / 151.68 lbs |
Assembled TV Size & Mass
5
| Specification | Value |
|---|---|
| Dimensions With Stand | 2177 mm / 217.7 cm / 85.7087 in / 7.1424 ft x 1246 mm / 124.6 cm / 49.0551 in / 4.0879 ft x 418 mm / 41.8 cm / 16.4567 in / 1.3714 ft (W x H x D) |
| Width With Stand | 2177 mm / 217.7 cm / 85.7087 in / 7.1424 ft |
| Height With Stand | 1246 mm / 124.6 cm / 49.0551 in / 4.0879 ft |
| Depth With Stand | 418 mm / 41.8 cm / 16.4567 in / 1.3714 ft |
| Weight With Stand | 70.3 kg / 154.98 lbs |
Shipping Carton Measurements
5
| Specification | Value |
|---|---|
| Box Dimensions | 2420 mm / 242 cm / 95.2756 in / 7.9396 ft x 1594 mm / 159.4 cm / 62.7559 in / 5.2297 ft x 500 mm / 50 cm / 19.685 in / 1.6404 ft (W x H x D) |
| Box Width | 2420 mm / 242 cm / 95.2756 in / 7.9396 ft |
| Box Height | 1594 mm / 159.4 cm / 62.7559 in / 5.2297 ft |
| Box Depth | 500 mm / 50 cm / 19.685 in / 1.6404 ft |
| Box Weight | 117 kg / 257.94 lbs |
Exterior Styling & Stand Footprint
5
| Specification | Value |
|---|---|
| Stand Width | 2029.6 mm / 202.96 cm / 79.9055 in / 6.6588 ft |
| Stand Depth | 418 mm / 41.8 cm / 16.4567 in / 1.3714 ft |
| Chassis Color | Black |
| Slim Design | XL Collection / Flat-thin Design |
| Cable Management | Yes |
Wall Mounting & Installation
9
| Specification | Value | What It Means |
|---|---|---|
| VESA Mount | Yes | 600 x 400 mm is the bracket-hole pattern to match when wall mounting. |
| VESA Interface | 600 x 400 mm | |
| VESA Size | 600 x 400 mm | |
| Removable Stand | Yes | |
| Height Adjustment | Yes | |
| Swivel Adjustment | No | |
| Tilt Adjustment | No | |
| Pivot Adjustment | No | |
| Cable Management | Yes |
Electrical Load & Efficiency
7
| Specification | Value |
|---|---|
| Power Input | 100 V - 120 V / 220 V - 240 V |
| 110V Input Range | 100 V - 120 V |
| 220V Input Range | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Average Power Consumption | 198 W |
| Maximum Power Consumption | 570 W |
| Standby Consumption | 0.5 W |
Environmental Operating Limits
4
| Specification | Value |
|---|---|
| Operating Temperature | 5 °C - 35 °C / 41 °F - 95 °F |
| Operating Humidity | 20 % - 80 % |
| Storage Temperature | -15 °C - 45 °C / 5 °F - 113 °F |
| Storage Humidity | 10 % - 90 % |
Picture Feature Inventory
2
| Specification | Value |
|---|---|
| Quantum Dot Color | Yes |
| IMAX Enhanced | Yes |
Gaming Validation & Compatibility
4
| Specification | Value |
|---|---|
| AMD FreeSync Certification | AMD FreeSync Premium Pro |
| Game Bar | Yes |
| ALLM | Yes |
| VRR | Yes |
Regulatory & Industry Approvals
2
| Specification | Value |
|---|---|
| CE | Yes |
| IMAX Enhanced | Yes |
In-the-Box Components
4
| Specification | Value | What It Means |
|---|---|---|
| Remote Control | Yes | |
| Remote Type | Voice remote control | |
| Remote Voice Control | Yes | |
| Screen Size | 97.5 in | 97.5 in determines viewing distance and furniture requirements. |
Frequently Asked Questions
01 What display does the TCL 98X11K use? +
It uses a 97.5 in HVA panel with Mini LED and 3840 x 2160 (4K) resolution.
02 How bright is the TCL 98X11K? +
Peak brightness is listed at 6500 cd/m².
03 Is the TCL 98X11K good for gaming? +
It lists 48 Hz - 144 Hz, VRR, ALLM, FreeSync Premium Pro. No exact measured input-lag figure is supplied.
04 Which HDR formats does the TCL 98X11K support? +
The source lists HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, Dolby Vision IQ.
05 What should be checked before installing the TCL 98X11K? +
Confirm the 600 x 400 mm mount pattern, the 70.3 kg / 154.98 lbs weight with stand and the cabinet/wall space required for this screen size.
Reviews
DISPLAYINPUT · INDEPENDENT · SPEC-BASED · NO SPONSORED PLACEMENT
SHEET № 98X11K
