tcl TCL 75P6L – Full Specifications TV
RATED
Good
6.4/10

74.5″ TCL 75P6L – Full Specifications

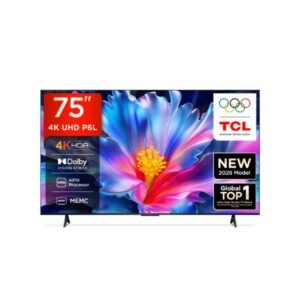

A 75-inch screen is the headline for the TCL 75P6L, a 4K Direct LED HVA Google TV.

74.5″ · 16:9 · MODEL YEAR 2026
tcl●TV
tcl TV
Add as preferred source
Display
74.5 in, HVA, Direct LED, 3840 x 2160 pixels
74.5
Refresh rate
50 Hz / 60 Hz
50 Hz
Dimensions
1667 x 959 x 74 mm
1667
Weight
18 kg
18 k
Processor
RealTek RTD2875P
2875

Pros & Cons

Pros
  • 74.5-inch HVA panel with Direct LED
  • 50 Hz / 60 Hz (hertz) with VRR and ALLM
  • HDR10+, HDR10, HLG format support
  • 3 x HDMI 2.0 plus HDMI eARC, optical audio out
  • Against the 65P6L, the practical differences are screen size, stand footprint, weight and VESA pattern rather than the core family platform.
Cons
  • The 330 cd/m² (candela per square meter) brightness figure is modest for HDR, and the panel remains a 50/60 Hz design despite the DLG 120 label.
  • No DisplayPort video input is listed
  • The supplied stand has no published positional adjustment
  • No native 4K 120 Hz input is published

Score & Ratings

6.4/10 Good
Design
7
Display
6
Color
6
Performance
6
Connectivity
7
Television Identity & Market 12
Specification Value
Brand TCL
Series P6L
Model 75P6L
Full Product Name TCL 75P6L
Model Year 2026
TV Category Entry / Value Tier
Market Position Entry-Level QLED
Primary Use Basic Everyday Viewing
Region / Variant Not specified
Launch Status 2026 model year
Available Colors Black
Warranty 1 year limited warranty
Screen Geometry & Format 8
Specification Value
Screen Size 74.5 in
Marketed Screen Size 74.5 in
Exact Diagonal 1893 mm / 189.3 cm / 74.5276 in / 6.2106 ft
Aspect Ratio 16:9
Active Display Width 1650.24 mm / 165.024 cm / 64.9701 in / 5.4142 ft
Active Display Height 928.26 mm / 92.826 cm / 36.5457 in / 3.0455 ft
Screen-to-Body Ratio 95.82 %
3D Support No

74.5" Display Size (189.2 cm) 16:9

189.2cm 74.5" 165 cm / 65" 166.7 cm / 65.6" (overall unit) 92.8 cm 36.5" 95.9 cm 37.8" (overall)

Resolution at a Glance

3840×2160 This screen 8K — 7,680×4,320 4K — 3,840×2,160 FHD — 1,920×1,080 HD — 1,280×720 8.3 MP — 4× the pixels of Full HD
Panel Architecture & Light Control 7
Specification Value
Panel Manufacturer CSOT
Panel Type HVA
Panel Technology VA
Backlight Type Direct LED
Panel Bit Depth 10 bits (8 bits + FRC)
FRC Yes
Display Colors 1073741824 colors / 30 bits
Resolution, Scaling & Signal 4
Specification Value
Native Resolution 3840 x 2160 pixels / Ultra HD (UHD) / 4K / 2160p
Pixel Density 59 ppi
Pixel Pitch 0.43 mm
HDCP Support Yes
◑ Luminance, Blacks & Contrast 6
Specification Value
Typical Brightness 330 cd/m²
Static Contrast 5000 : 1
Static Contrast Ratio 5000 : 1
Viewing Angles 178 ° / 178 °
Horizontal Viewing Angle 178 °
Vertical Viewing Angle 178 °
Color Reproduction & Calibration 1
Specification Value
sRGB Coverage 72 %
RECOMMENDED VIEWING DISTANCE 75"
Viewing Distance = 1.5–2.5 × Screen Size
75" Centre screen at eye level (~42") 75" TV → 9.3–15.5 ft viewing distance

25° field of view — Comfortable, relaxed viewing.

HDR Formats & Tone Mapping 2
Specification Value
HDR Support
HDR10+HDR10HLG
HDR Formats
HDR10+HDR10HLG
Motion Processing & Response 3
Specification Value
Native Refresh Rate 50 Hz / 60 Hz
Maximum Refresh Rate 50 Hz / 60 Hz
Motion Processing AI MotionMotion Clarity
Console, VRR & Game Tools 2
Specification Value
Auto Low Latency Mode Auto Low Latency Mode (ALLM)
Game Bar Yes
Broadcast Tuners & Reception 10
Specification Value
Built-In TV Tuner
Yes
Tuner Configuration Analog (NTSC / PAL / SECAM)DVB-TDVB-T2DVB-CDVB-SDVB-S2
Analog Tuner NTSC / PAL / SECAM
Digital Terrestrial Tuner dvb-t
Digital Terrestrial Tuner 2 dvb-t2
Digital Cable Tuner dvb-c
Digital Satellite Tuner dvb-s
Digital Satellite Tuner 2 dvb-s2
Satellite Input 1× F-type
Antenna RF Input Yes
Compute, Memory & Storage 8
Specification Value
Processor Brand Name AiPQ
System on Chip RealTek RTD2875P
SoC Model RealTek RTD2875P
CPU Architecture 2x ARM Cortex-A75, 2x ARM Cortex-A55, 1300 MHz, Cores: 4
CPU Cores 4
GPU IMG BXE, 650 MHz
RAM Capacity 2 GB, 1333 MHz
Internal Storage 16 GB
Smart Platform & System 2
Specification Value
Smart TV Yes
Operating System Google TV
Streaming & Entertainment 4
Specification Value
Netflix Yes
YouTube Yes
Prime Video Yes
Disney+ Yes
Voice Assistants & Search 2
Specification Value
Voice Control Yes
Google Assistant Yes
HDMI Signal Interface 7
Specification Value
Total HDMI Ports
3
HDMI 2.0 Ports
3× HDMI 2.0
HDMI CEC Yes
Audio Return Channel Yes
Enhanced Audio Return Channel Yes
Auto Low Latency Mode Auto Low Latency Mode (ALLM)
HDCP Support Yes

Ports & Connections

HDMI3USB-A2EtherneteARCOptical AudioHeadphoneSpeaker Out30Antenna / RFCable / SatelliteComposite / AV
USB, Audio & Legacy I/O 10
Specification Value
Total USB Ports
2
USB-A 2.0 Ports
1× USB 2.0
USB-A 3.0 Ports
1× USB 3.0
Ethernet Port 1× RJ45
Optical Audio Output 1× S/PDIF
Headphone Output Yes
Satellite Input 1× F-type
Antenna Input 1× RF
Common Interface Slot 1× CI+
Composite Input Yes
Wireless, LAN & Casting 9
Specification Value
LAN Yes
Wi-Fi Wi-Fi 8
Wi-Fi Standards 802.11a
Bluetooth Bluetooth 5.4
Wi-Fi Direct Yes
DLNA Yes
Apple AirPlay Yes
Google Cast Yes
Miracast Yes
Speaker Layout & Output 5
Specification Value
Built-In Speakers Yes
Speaker Configuration 2.0 CH
Speaker Channels 2.0 CH
Total Audio Output 30W
Total Speaker Output 30W
Camera & Video Calling 1
Specification Value
Built-In Camera No
Panel-Only Size & Mass 5
Specification Value
Dimensions Without Stand 1667 mm x 959 mm x 74 mm (W x H x D)
Width Without Stand 1667 mm
Height Without Stand 959 mm
Depth Without Stand 74 mm
Weight Without Stand 18 kg
Assembled TV Size & Mass 5
Specification Value
Dimensions With Stand 1667 mm x 1027 mm x 349 mm (W x H x D)
Width With Stand 1667 mm
Height With Stand 1027 mm
Depth With Stand 349 mm
Weight With Stand 18.2 kg
Shipping Carton Measurements 5
Specification Value
Box Dimensions 1850 mm x 1125 mm x 178 mm (W x H x D)
Box Width 1850 mm
Box Height 1125 mm
Box Depth 178 mm
Box Weight 27.8 kg / 61.29 lbs
Exterior Styling & Stand Footprint 2
Specification Value
Stand Width 1290 mm / 129 cm / 50.7874 in / 4.2323 ft
Chassis Color Black
Wall Mounting & Installation 9
Specification Value
VESA Mount 300 x 300 mm
VESA Interface 300 x 300 mm
VESA Size 300 x 300 mm
Removable Stand Yes
Height Adjustment NoLandscape / portrait pivot: NoLeft / right swivel: NoForward / backward tilt: No
Swivel Adjustment NoForward / backward tilt: No
Tilt Adjustment No
Pivot Adjustment NoLeft / right swivel: NoForward / backward tilt: No
Portrait Mode No
Electrical Load & Efficiency 3
Specification Value
Power Input 100 V - 120 V / 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Standby Consumption 0.5 W
Environmental Operating Limits 4
Specification Value
Operating Temperature 5 °C - 35 °C / 41 °F - 95 °F
Operating Humidity 20 % - 80 %
Storage Temperature -15 °C - 45 °C / 5 °F - 113 °F
Storage Humidity 10 % - 90 %
Gaming Validation & Compatibility 2
Specification Value
Game Bar Yes
ALLM Auto Low Latency Mode (ALLM)
Regulatory & Industry Approvals 2
Specification Value
CE Yes
CI+ Certification Yes (CI+ 1.4)
In-the-Box Components 2
Specification Value
Remote Control Standard remote control
Screen Size 74.5 in
⚡

Estimated Running Cost

Based on this product's rated power draw, not an independent lab measurement — actual usage varies with settings and content.

Daily—
Monthly—
Annually—

Uses about 18% less power than the average we track in this category.
